Issue:
Wiring DB resistor on an ATV320.

Product Line:
ATV320 with C and B suffix

Environment:
All

Cause:
Wiring terminations for adding a DB resistor on the ATV320 drive.

Resolution:

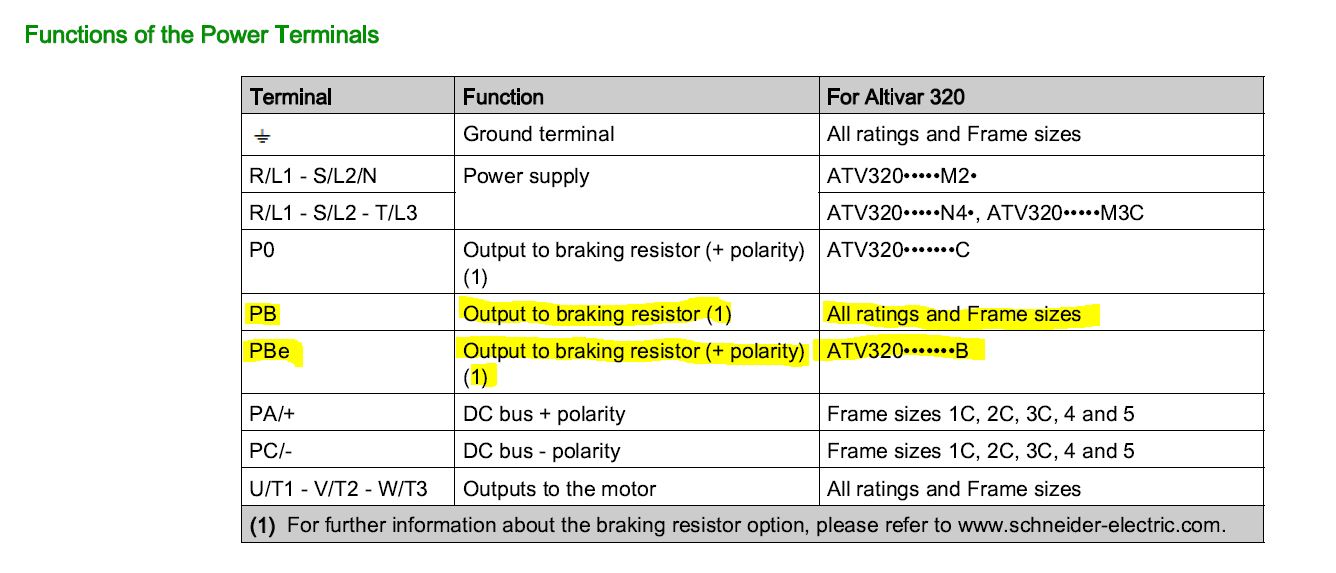

The ATV320.....B   DB resistor terminals are PBe and PB.

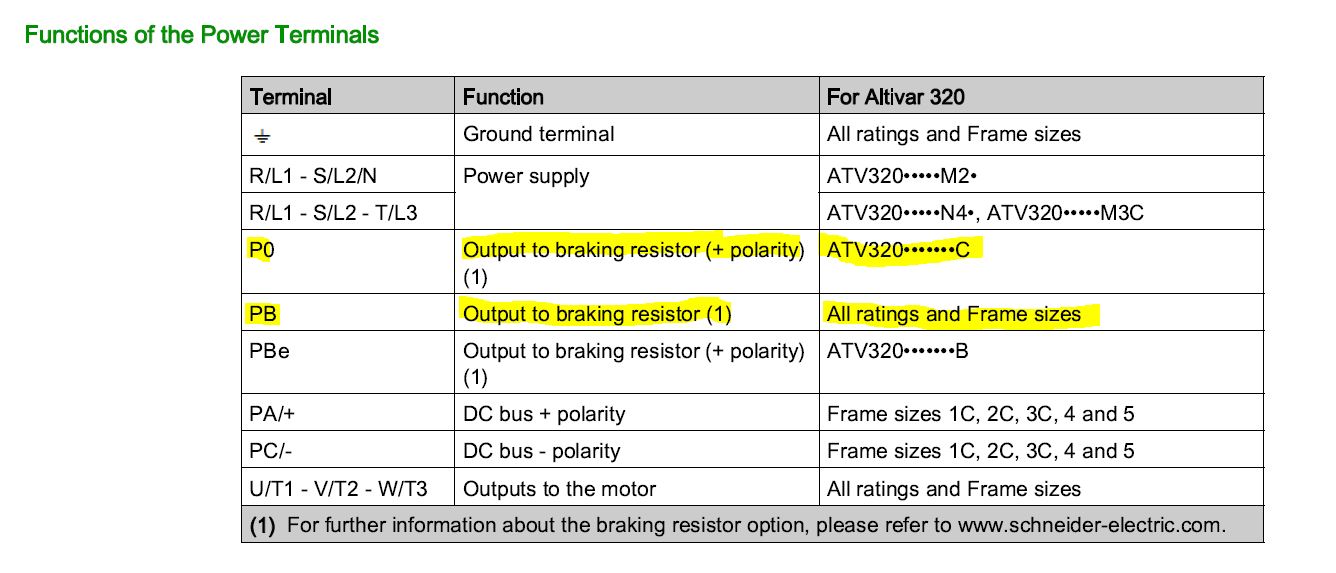

The ATV320.....C   DB resistor terminals are PO and PB.

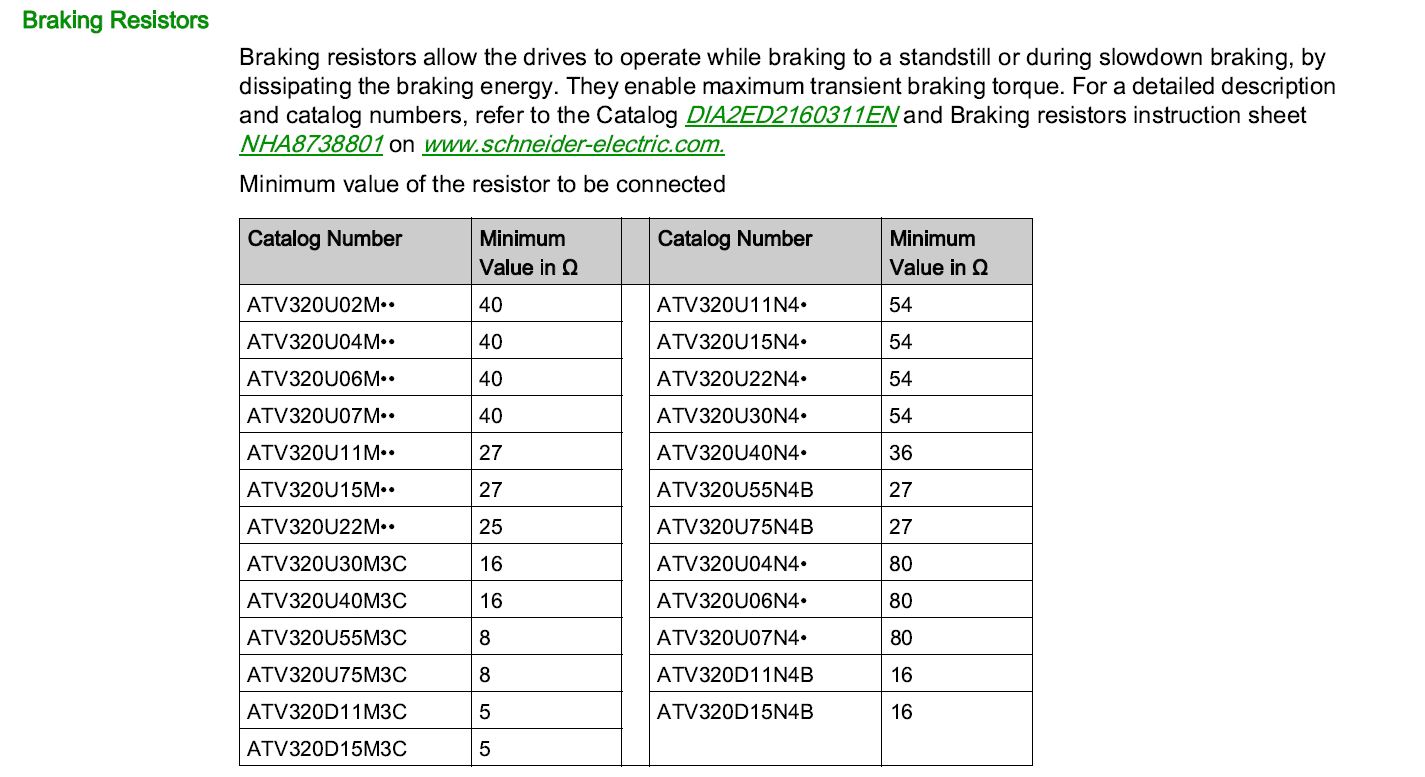

See the attached documents on terminations and min resistance.
