How to correct the Scadapack Workbench Error 0046: Insufficient reserved memory size for temporary variables

• Increase the memory size in the Scadapack Workbench program.

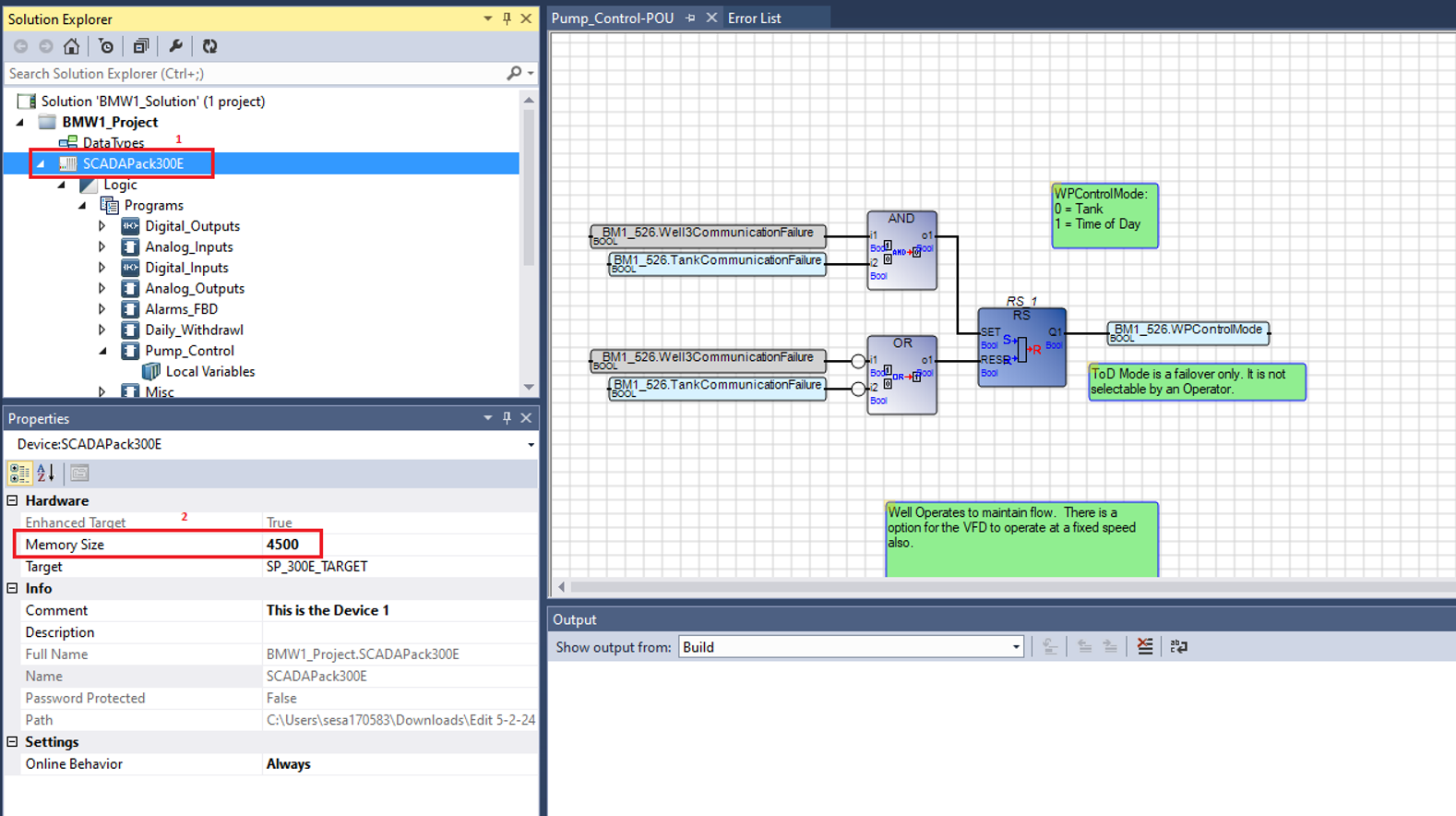

• Under the program name in solution explorer, go to properties>Memory size, see details below.


  Run the Memshow to check how many free NVram memory you have.
• Connect to SCADAPack using SCADAPack E configurator

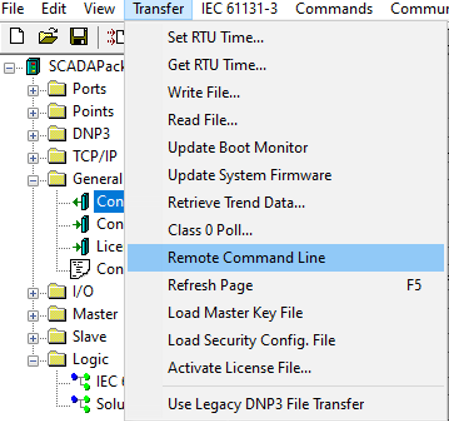

• Under Transfer menu, select Remote Command Line.

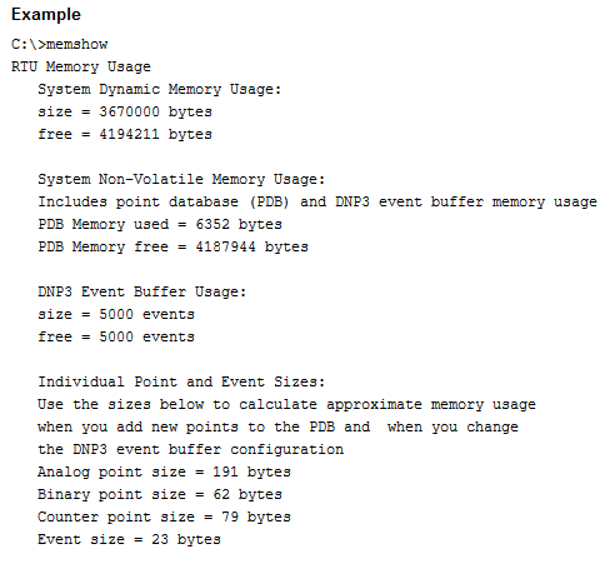

• Then Type command Memshow, it displays information related to system memory, see details below
