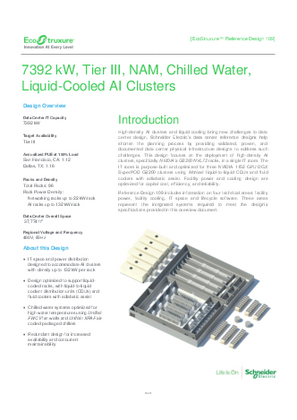

7392 kW, Tier III, NAM, Chilled Water, Liquid-Cooled AI Clusters This document is current but may reference obsolete products.

High-density AI clusters and liquid cooling bring new challenges to data center design. Schneider Electric’s data center reference designs help shorten the planning process by providing validated, proven, and documented data center physical infrastructure designs to address such challenges. This design focuses on the deployment of high-density AI clusters, specifically NVIDIA’s GB200 NVL72 racks, in a single IT room. The IT room is purpose-built and optimized for three NVIDIA 1152 GPU DGX SuperPOD GB200 clusters using liquid-to-liquid CDUs and fluid coolers with adiabatic assist. Facility power and cooling design are optimized for capital cost, efficiency, and reliability. Reference Design 109 includes information on four technical areas: facility power, facility cooling, IT space and lifecycle software. These areas represent the integrated systems required to meet the design’s specifications provided in this overview document.
