Issue:
Current design repair parts

Product Line:

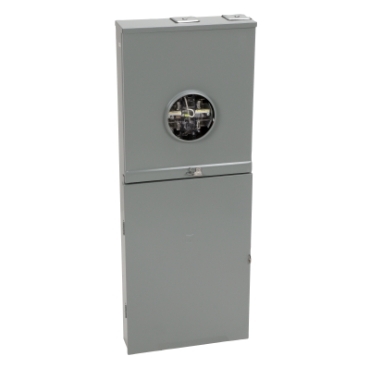

Combination Service Entrance Devices (CSED)

Resolution:
NOTE: WIRING DIAGRAM AND LABELS ARE NOT INCLUDED ON THE PARTS LISTED BELOW.
The parts listed here are the only parts considered field replaceable:
Meter Cover - 7329431450 (includes latch)
Load Center Cover - 7329421550 (includes hinges)
Load Center Cover Mounting Screws - 2159417121 (2 required)
Dead Front Interior Trim - 7329421201
Dead Front Interior Trim Mounting Screws - 4020513001K (contains 10 screws; only 3 screws are required)
Load Center Interior - 4056161751 (main breaker and feed-thru lugs not included)
Load Center Interior Mounting Screws - 2153217161 (4 required)
Load Center Interior Guide Screws - 4020516101 (2 required)
Main Breaker - QOM2200VH, Mounting Hardware - (2) 2342702001 Keps Nuts and (1) 2142717480 Screw
Feed Thru Phase Lugs - 4025116051 (1 per phase) and Mounting Keps Nuts part #2342702001 (1 per lug)
Feed Thru Neutral Assembly - 7329441650 (includes only the 2 lugs and plate the lugs mount on)
Feed Thru Neutral Assemlby mounting screws - 2153217161 (2 required)
Meter Socket Assembly - 7329442050 (includes complete lever bypass meter socket assembly, line side lugs, and mounting pan)
Meter socket assembly mounting screws - 2149020100 (3 required)
Load Center Cover Latch - 4056314701 (mounts to the right side of the box using one rivet, 2410712140)
Directory label - 4027182101 (contains the lines for marking the circuit identification only)
Top Endwall Hub Closing plate - 4056158350 (requires gasket 4023945201, clamp plate 4056157201, and clamp plate nut 2320100200)
