How does the base mount on the tube for a XVB indicating bank?

Issue:
XVB mounting

Product Line:
Tower Lights and Beacons

Environment:
XVB 70mm Diameter

Resolution:

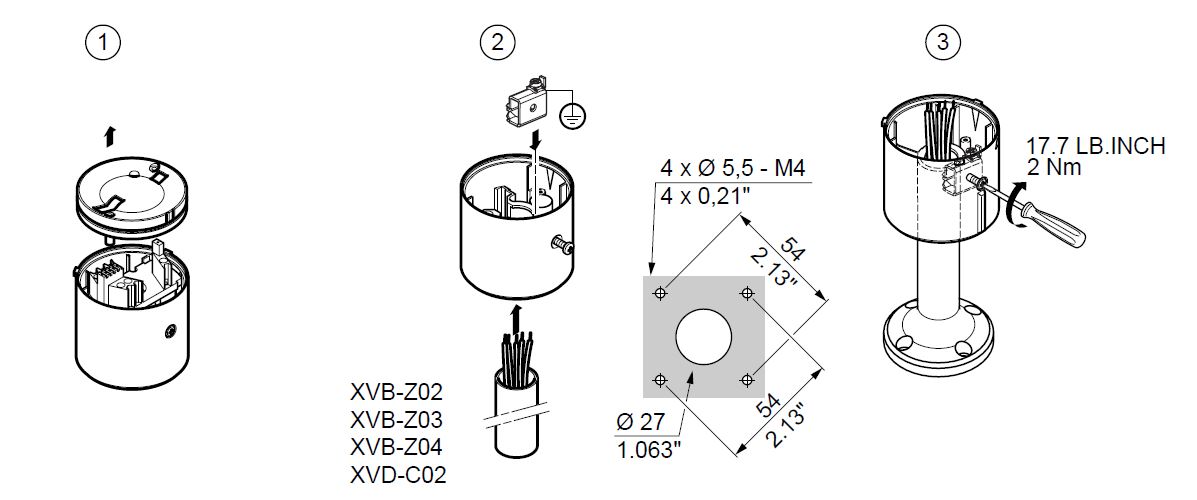

Remove the cover off the base unit. Slide the mounting tube into the base. There is a set screw on the side of the base to secure the base on the tube.

Released for:Schneider Electric Canada

Attachment(s)

XVB mounting base and tube.JPG.jpg

[66.07 KB]

Published on:2002-12-31Last Modified on:2022-08-04

Range:

Harmony XVB

Range:

Harmony XVB
