¿Cuál es la duración de la batería para la tarjeta de memoria PCMCIA de la Plataforma Quantum?
La duración de la batería se estima en función de:
La siguiente tabla presenta la vida útil de la batería principal TSX BAT M01 (PV1 / 2/3) para tarjetas de memoria PCMCIA:
Vida útil de la batería principal de PV4 / 5 PCMCIA (en años)
La siguiente tabla presenta la vida útil de la batería principal TSX BAT M02 (PV4 / 5) para tarjetas de memoria PCMCIA:
Vida útil de la batería principal de PV6 PCMCIA (en años)
La siguiente tabla presenta la vida útil de la batería principal TSX BAT M02 (PV6) para tarjetas de memoria PCMCIA:
Vida útil mínima de la batería principal, en un PLC apagado
En un PLC apagado, la vida útil mínima de la batería principal es de 6 meses en PV6 PCMCIA.
Vida útil de la batería auxiliar
La batería auxiliar TSX BATM 03 está incluida en el producto PCMCIA. Cualesquiera que sean los casos de uso y la temperatura ambiente, la vida útil de la batería auxiliar es:

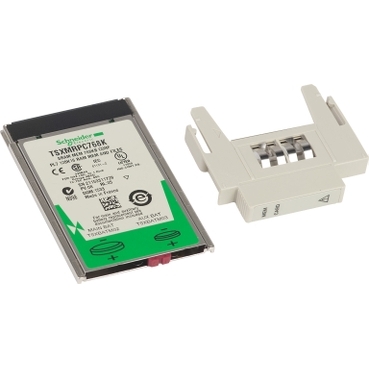

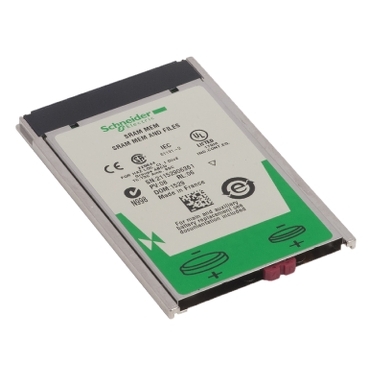

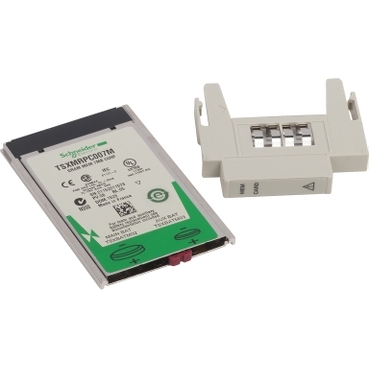

- Tarjetas de memoria RAM PCMCIA
- Diferentes de la versión del producto (PV): PV1 / 2/3, PV4 / 5 y PV6
- Cuatro temperaturas ambiente para la ubicación del PLC: 25 ° C / 40 ° C / 50 ° C / 60 ° C
- Cuatro casos de uso diferentes de los PCMCIA: 100%, 92%, 66% y 33% del tiempo de encendido del PLC. Estos valores son para las siguientes configuraciones de cliente:
- 100%: PLC encendido todo el año o durante 51 semanas
- 92%: PLC encendido todo el año excepto durante un mes de mantenimiento
- 66%: PLC encendido todo el año excepto durante todos los fines de semana más un mes de mantenimiento
- 33%: PLC encendido durante todo el año 12 horas al día, excepto durante todos los fines de semana más un mes de mantenimiento.
- Un mínimo (mínimo) y un valor de vida útil típico:
- El valor mínimo proviene de las características más desfavorables dadas por los fabricantes de componentes. La vida útil real observada será mayor que este valor.
- El valor típico proviene de las características típicas del componente.
La siguiente tabla presenta la vida útil de la batería principal TSX BAT M01 (PV1 / 2/3) para tarjetas de memoria PCMCIA:
| PV1/2/3 | For a 25°C PLC ambient temperature | |||||||
|---|---|---|---|---|---|---|---|---|
| 100% powered up | 92% PU (30d maint. | 66% PU (WE. 30d maint. | 33% PU (12h.WE. 30d maint. | |||||
| Typical | Min | Typical | Min | Typical | Min | Typical | Min | |
| TSX MCP C 224K | 7.10 | 7.10 | 6.71 | 5.58 | 5.77 | 3.36 | 4.82 | 2.20 |
| TSX MCP C 512K | 7.10 | 7.10 | 6.71 | 5.65 | 5.77 | 3.46 | 4.82 | 2.28 |
| TSX MCP C 002M | 7.10 | 7.10 | 6.29 | 3.82 | 4.66 | 1.57 | 3.45 | 0.88 |
| TSX MRP P128K | 7.10 | 7.10 | 6.71 | 5.58 | 5.77 | 3.36 | 4.82 | 2.20 |
| TSX MRP P224K | 7.10 | 7.10 | 6.71 | 5.65 | 5.77 | 3.46 | 4.82 | 2.28 |
| TSX MRP P384K | 7.10 | 7.10 | 6.71 | 4.99 | 5.77 | 2.60 | 4.82 | 1.59 |
| TSX MRP C448K | 7.10 | 7.10 | 6.29 | 4.65 | 4.66 | 2.24 | 3.45 | 1.33 |
| TSX MRP C768K | 7.10 | 7.10 | 6.29 | 4.65 | 4.66 | 2.24 | 3.45 | 1.33 |
| TSX MRP C001M | 7.10 | 7.10 | 5.91 | 3.95 | 3.91 | 1.66 | 2.68 | 0.94 |
| TSX MRP C01M7 | 7.10 | 7.10 | 5.58 | 3.43 | 3.36 | 1.32 | 2.20 | 0.72 |
| TSX MRP C002M | 7.10 | 7.10 | 5.91 | 3.34 | 3.91 | 1.26 | 2.68 | 0.69 |
| TSX MRP C003M | 7.10 | 7.10 | 5.58 | 2.60 | 3.36 | 0.87 | 2.20 | 0.47 |
| TSX MRP C007M | 7.10 | 7.10 | 4.56 | 1.59 | 2.16 | 0.46 | 1.27 | 0.24 |
| TSX MRP F004M | 7.10 | 7.10 | 5.58 | 2.60 | 3.36 | 0.87 | 2.20 | 0.47 |
| TSX MRP F008M | 7.10 | 7.10 | 4.56 | 1.59 | 2.16 | 0.46 | 1.27 | 0.24 |
| PV1/2/3 | For a 40°C PLC ambient temperature | |||||||
|---|---|---|---|---|---|---|---|---|
| 100% powered up | 92% PU (30d maint. | 66% PU (WE. 30d maint. | 33% PU (12h.WE. 30d maint. | |||||
| Typical | Min | Typical | Min | Typical | Min | Typical | Min | |
| TSX MCP C 224K | 3.55 | 3.55 | 3.54 | 3.20 | 3.54 | 2.46 | 3.48 | 1.87 |
| TSX MCP C 512K | 3.55 | 3.55 | 3.54 | 3.22 | 3.54 | 2.51 | 3.48 | 1.93 |
| TSX MCP C 002M | 3.55 | 3.55 | 3.42 | 2.53 | 3.08 | 1.34 | 2.71 | 0.82 |
| TSX MRP P128K | 3.55 | 3.55 | 3.54 | 3.20 | 3.54 | 2.46 | 3.48 | 1.87 |
| TSX MRP P224K | 3.55 | 3.55 | 3.54 | 3.22 | 3.54 | 2.51 | 3.48 | 1.93 |
| TSX MRP P384K | 3.55 | 3.55 | 3.54 | 3.00 | 3.54 | 2.02 | 3.48 | 1.41 |
| TSX MRP C448K | 3.55 | 3.55 | 3.42 | 2.87 | 3.08 | 1.80 | 2.71 | 1.20 |
| TSX MRP C768K | 3.55 | 3.55 | 3.42 | 2.87 | 3.08 | 1.80 | 2.71 | 1.20 |
| TSX MRP C001M | 3.55 | 3.55 | 3.30 | 2.59 | 2.74 | 1.40 | 2.21 | 0.87 |
| TSX MRP C01M7 | 3.55 | 3.55 | 3.20 | 2.35 | 2.46 | 1.15 | 1.87 | 0.69 |
| TSX MRP C002M | 3.55 | 3.55 | 3.30 | 2.31 | 2.74 | 1.11 | 2.21 | 0.65 |
| TSX MRP C003M | 3.55 | 3.55 | 3.20 | 1.93 | 2.46 | 0.80 | 1.87 | 0.45 |
| TSX MRP C007M | 3.55 | 3.55 | 2.84 | 1.31 | 1.75 | 0.44 | 1.16 | 0.24 |
| TSX MRP F004M | 3.55 | 3.55 | 3.20 | 1.93 | 2.46 | 0.80 | 1.87 | 0.45 |
| TSX MRP F008M | 3.55 | 3.55 | 2.84 | 1.31 | 1.75 | 0.44 | 1.16 | 0.24 |
| PV1/2/3 | For a 50°C PLC ambient temperature | |||||||
|---|---|---|---|---|---|---|---|---|
| 100% powered up | 92% PU (30d maint. | 66% PU (WE. 30d maint. | 33% PU (12h.WE. 30d maint. | |||||
| Typical | Min | Typical | Min | Typical | Min | Typical | Min | |
| TSX MCP C 224K | 2.35 | 2.35 | 2.42 | 2.25 | 2.69 | 2.02 | 3.10 | 1.75 |
| TSX MCP C 512K | 2.35 | 2.35 | 2.42 | 2.26 | 2.69 | 2.05 | 3.10 | 1.81 |
| TSX MCP C 002M | 2.35 | 2.35 | 2.36 | 1.90 | 2.42 | 1.20 | 2.47 | 0.80 |
| TSX MRP P128K | 2.35 | 2.35 | 2.42 | 2.25 | 2.69 | 2.02 | 3.10 | 1.75 |
| TSX MRP P224K | 2.35 | 2.35 | 2.42 | 2.26 | 2.69 | 2.05 | 3.10 | 1.81 |
| TSX MRP P384K | 2.35 | 2.35 | 2.42 | 2.15 | 2.69 | 1.71 | 3.10 | 1.34 |
| TSX MRP C448K | 2.35 | 2.35 | 2.36 | 2.09 | 2.42 | 1.55 | 2.47 | 1.15 |
| TSX MRP C768K | 2.35 | 2.35 | 2.36 | 2.09 | 2.42 | 1.55 | 2.47 | 1.15 |
| TSX MRP C001M | 2.35 | 2.35 | 2.31 | 1.93 | 2.20 | 1.25 | 2.05 | 0.85 |
| TSX MRP C01M7 | 2.35 | 2.35 | 2.25 | 1.80 | 2.02 | 1.04 | 1.75 | 0.67 |
| TSX MRP C002M | 2.35 | 2.35 | 2.31 | 1.77 | 2.20 | 1.01 | 2.05 | 0.64 |
| TSX MRP C003M | 2.35 | 2.35 | 2.25 | 1.54 | 2.02 | 0.75 | 1.75 | 0.44 |
| TSX MRP C007M | 2.35 | 2.35 | 2.07 | 1.12 | 1.51 | 0.42 | 1.11 | 0.23 |
| TSX MRP F004M | 2.35 | 2.35 | 2.25 | 1.54 | 2.02 | 0.75 | 1.75 | 0.44 |
| TSX MRP F008M | 2.35 | 2.35 | 2.07 | 1.12 | 1.51 | 0.42 | 1.11 | 0.23 |
| PV1/2/3 | For a 60°C PLC ambient temperature | |||||||
|---|---|---|---|---|---|---|---|---|
| 100% powered up | 92% PU (30d maint. | 66% PU (WE. 30d maint. | 33% PU (12h.WE. 30d maint. | |||||
| Typical | Min | Typical | Min | Typical | Min | Typical | Min | |
| TSX MCP C 224K | 1.57 | 1.57 | 1.63 | 1.56 | 1.91 | 1.54 | 2.40 | 1.50 |
| TSX MCP C 512K | 1.57 | 1.57 | 1.63 | 1.56 | 1.91 | 1.56 | 2.40 | 1.54 |
| TSX MCP C 002M | 1.57 | 1.57 | 1.61 | 1.38 | 1.77 | 1.01 | 2.00 | 0.74 |
| TSX MRP P128K | 1.57 | 1.57 | 1.63 | 1.56 | 1.91 | 1.54 | 2.40 | 1.50 |
| TSX MRP P224K | 1.57 | 1.57 | 1.63 | 1.56 | 1.91 | 1.56 | 2.40 | 1.54 |
| TSX MRP P384K | 1.57 | 1.57 | 1.63 | 1.51 | 1.91 | 1.36 | 2.40 | 1.19 |
| TSX MRP C448K | 1.57 | 1.57 | 1.61 | 1.47 | 1.77 | 1.25 | 2.00 | 1.04 |
| TSX MRP C768K | 1.57 | 1.57 | 1.61 | 1.47 | 1.77 | 1.25 | 2.00 | 1.04 |
| TSX MRP C001M | 1.57 | 1.57 | 1.58 | 1.40 | 1.65 | 1.05 | 1.72 | 0.78 |
| TSX MRP C01M7 | 1.57 | 1.57 | 1.56 | 1.33 | 1.54 | 0.90 | 1.50 | 0.63 |
| TSX MRP C002M | 1.57 | 1.57 | 1.58 | 1.31 | 1.65 | 0.87 | 1.72 | 0.60 |
| TSX MRP C003M | 1.57 | 1.57 | 1.56 | 1.18 | 1.54 | 0.67 | 1.50 | 0.42 |
| TSX MRP C007M | 1.57 | 1.57 | 1.47 | 0.92 | 1.23 | 0.40 | 1.00 | 0.23 |
| TSX MRP F004M | 1.57 | 1.57 | 1.56 | 1.18 | 1.54 | 0.67 | 1.50 | 0.42 |
| TSX MRP F008M | 1.57 | 1.57 | 1.47 | 0.92 | 1.23 | 0.40 | 1.00 | 0.23 |
Vida útil de la batería principal de PV4 / 5 PCMCIA (en años)
La siguiente tabla presenta la vida útil de la batería principal TSX BAT M02 (PV4 / 5) para tarjetas de memoria PCMCIA:
| PV4/5 | For a 25°C PLC ambient temperature | |||||||
|---|---|---|---|---|---|---|---|---|
| 100% powered up | 92% PU (30d maint. | 66% PU (WE. 30d maint. | 33% PU (12h.WE. 30d maint. | |||||
| Typical | Min | Typical | Min | Typical | Min | Typical | Min | |
| TSX MCP C 224K | 7.22 | 7.22 | 7.15 | 6.27 | 7.02 | 4.48 | 6.76 | 3.23 |
| TSX MCP C 512K | 7.22 | 7.22 | 7.15 | 6.33 | 7.02 | 4.59 | 6.76 | 3.35 |
| TSX MCP C 002M | 7.22 | 7.22 | 6.83 | 4.69 | 5.90 | 2.25 | 4.96 | 1.33 |
| TSX MRP P128K | 7.22 | 7.22 | 7.15 | 6.27 | 7.02 | 4.48 | 6.76 | 3.23 |
| TSX MRP P224K | 7.22 | 7.22 | 7.15 | 6.33 | 7.02 | 4.59 | 6.76 | 3.35 |
| TSX MRP P384K | 7.22 | 7.22 | 7.15 | 5.77 | 7.02 | 3.57 | 6.76 | 2.36 |
| TSX MRP C448K | 7.22 | 7.22 | 6.83 | 5.47 | 5.90 | 3.12 | 4.96 | 1.99 |
| TSX MRP C768K | 7.22 | 7.22 | 6.83 | 5.47 | 5.90 | 3.12 | 4.96 | 1.99 |
| TSX MRP C001M | 7.22 | 7.22 | 6.54 | 4.82 | 5.09 | 2.37 | 3.91 | 1.41 |
| TSX MRP C01M7 | 7.22 | 7.22 | 6.27 | 4.30 | 4.48 | 1.91 | 3.23 | 1.10 |
| TSX MRP C002M | 7.22 | 7.22 | 6.54 | 4.20 | 5.09 | 1.83 | 3.91 | 1.04 |
| TSX MRP C003M | 7.22 | 7.22 | 6.27 | 3.41 | 4.48 | 1.29 | 3.23 | 0.71 |
| TSX MRP C007M | 7.22 | 7.22 | 5.39 | 2.21 | 3.02 | 0.70 | 1.91 | 0.37 |
| TSX MRP F004M | 7.22 | 7.22 | 6.27 | 3.41 | 4.48 | 1.29 | 3.23 | 0.71 |
| TSX MRP F008M | 7.22 | 7.22 | 5.39 | 2.21 | 3.02 | 0.70 | 1.91 | 0.37 |
| PV4/5 | For a 40°C PLC ambient temperature | |||||||
|---|---|---|---|---|---|---|---|---|
| 100% powered up | 92% PU (30d maint. | 66% PU (WE. 30d maint. | 33% PU (12h.WE. 30d maint. | |||||
| Typical | Min | Typical | Min | Typical | Min | Typical | Min | |
| TSX MCP C 224K | 4.63 | 4.63 | 4.72 | 4.32 | 5.09 | 3.61 | 5.59 | 2.94 |
| TSX MCP C 512K | 4.63 | 4.63 | 4.72 | 4.35 | 5.09 | 3.68 | 5.59 | 3.04 |
| TSX MCP C 002M | 4.63 | 4.63 | 4.58 | 3.51 | 4.48 | 2.00 | 4.30 | 1.28 |
| TSX MRP P128K | 4.63 | 4.63 | 4.72 | 4.32 | 5.09 | 3.61 | 5.59 | 2.94 |
| TSX MRP P224K | 4.63 | 4.63 | 4.72 | 4.35 | 5.09 | 3.68 | 5.59 | 3.04 |
| TSX MRP P384K | 4.63 | 4.63 | 4.72 | 4.08 | 5.09 | 2.99 | 5.59 | 2.20 |
| TSX MRP C448K | 4.63 | 4.63 | 4.58 | 3.93 | 4.48 | 2.68 | 4.30 | 1.87 |
| TSX MRP C768K | 4.63 | 4.63 | 4.58 | 3.93 | 4.48 | 2.68 | 4.30 | 1.87 |
| TSX MRP C001M | 4.63 | 4.63 | 4.45 | 3.58 | 4.00 | 2.10 | 3.49 | 1.35 |
| TSX MRP C01M7 | 4.63 | 4.63 | 4.32 | 3.29 | 3.61 | 1.73 | 2.94 | 1.06 |
| TSX MRP C002M | 4.63 | 4.63 | 4.45 | 3.23 | 4.00 | 1.66 | 3.49 | 1.01 |
| TSX MRP C003M | 4.63 | 4.63 | 4.32 | 2.74 | 3.61 | 1.21 | 2.94 | 0.69 |
| TSX MRP C007M | 4.63 | 4.63 | 3.89 | 1.91 | 2.60 | 0.67 | 1.80 | 0.36 |
| TSX MRP F004M | 4.63 | 4.63 | 4.32 | 2.74 | 3.61 | 1.21 | 2.94 | 0.69 |
| TSX MRP F008M | 4.63 | 4.63 | 3.89 | 1.91 | 2.60 | 0.67 | 1.80 | 0.36 |
| PV4/5 | For a 50°C PLC ambient temperature | |||||||
|---|---|---|---|---|---|---|---|---|
| 100% powered up | 92% PU (30d maint. | 66% PU (WE. 30d maint. | 33% PU (12h.WE. 30d maint. | |||||
| Typical | Min | Typical | Min | Typical | Min | Typical | Min | |
| TSX MCP C 224K | 2.58 | 2.58 | 2.69 | 2.56 | 3.12 | 2.50 | 3.89 | 2.39 |
| TSX MCP C 512K | 2.58 | 2.58 | 2.69 | 2.56 | 3.12 | 2.53 | 3.89 | 2.45 |
| TSX MCP C 002M | 2.58 | 2.58 | 2.64 | 2.25 | 2.88 | 1.61 | 3.22 | 1.16 |
| TSX MRP P128K | 2.58 | 2.58 | 2.69 | 2.56 | 3.12 | 2.50 | 3.89 | 2.39 |
| TSX MRP P224K | 2.58 | 2.58 | 2.69 | 2.56 | 3.12 | 2.53 | 3.89 | 2.45 |
| TSX MRP P384K | 2.58 | 2.58 | 2.69 | 2.47 | 3.12 | 2.18 | 3.89 | 1.88 |
| TSX MRP C448K | 2.58 | 2.58 | 2.64 | 2.41 | 2.88 | 2.01 | 3.22 | 1.63 |
| TSX MRP C768K | 2.58 | 2.58 | 2.64 | 2.41 | 2.88 | 2.01 | 3.22 | 1.63 |
| TSX MRP C001M | 2.58 | 2.58 | 2.60 | 2.28 | 2.68 | 1.67 | 2.74 | 1.23 |
| TSX MRP C01M7 | 2.58 | 2.58 | 2.56 | 2.15 | 2.50 | 1.42 | 2.39 | 0.98 |
| TSX MRP C002M | 2.58 | 2.58 | 2.60 | 2.13 | 2.68 | 1.38 | 2.74 | 0.94 |
| TSX MRP C003M | 2.58 | 2.58 | 2.56 | 1.90 | 2.50 | 1.05 | 2.39 | 0.66 |
| TSX MRP C007M | 2.58 | 2.58 | 2.40 | 1.46 | 1.97 | 0.62 | 1.58 | 0.35 |
| TSX MRP F004M | 2.58 | 2.58 | 2.56 | 1.90 | 2.50 | 1.05 | 2.39 | 0.66 |
| TSX MRP F008M | 2.58 | 2.58 | 2.40 | 1.46 | 1.97 | 0.62 | 1.58 | 0.35 |
| PV4/5 | For a 60°C PLC ambient temperature | |||||||
|---|---|---|---|---|---|---|---|---|
| 100% powered up | 92% PU (30d maint. | 66% PU (WE. 30d maint. | 33% PU (12h.WE. 30d maint. | |||||
| Typical | Min | Typical | Min | Typical | Min | Typical | Min | |
| TSX MCP C 224K | 1.75 | 1.75 | 1.84 | 1.78 | 2.21 | 1.88 | 2.95 | 2.00 |
| TSX MCP C 512K | 1.75 | 1.75 | 1.84 | 1.78 | 2.21 | 1.90 | 2.95 | 2.04 |
| TSX MCP C 002M | 1.75 | 1.75 | 1.82 | 1.62 | 2.09 | 1.33 | 2.55 | 1.06 |
| TSX MRP P128K | 1.75 | 1.75 | 1.84 | 1.78 | 2.21 | 1.88 | 2.95 | 2.00 |
| TSX MRP P224K | 1.75 | 1.75 | 1.84 | 1.78 | 2.21 | 1.90 | 2.95 | 2.04 |
| TSX MRP P384K | 1.75 | 1.75 | 1.84 | 1.73 | 2.21 | 1.70 | 2.95 | 1.63 |
| TSX MRP C448K | 1.75 | 1.75 | 1.82 | 1.71 | 2.09 | 1.59 | 2.55 | 1.44 |
| TSX MRP C768K | 1.75 | 1.75 | 1.82 | 1.71 | 2.09 | 1.59 | 2.55 | 1.44 |
| TSX MRP C001M | 1.75 | 1.75 | 1.80 | 1.64 | 1.98 | 1.37 | 2.24 | 1.11 |
| TSX MRP C01M7 | 1.75 | 1.75 | 1.78 | 1.57 | 1.88 | 1.20 | 2.00 | 0.91 |
| TSX MRP C002M | 1.75 | 1.75 | 1.80 | 1.56 | 1.98 | 1.17 | 2.24 | 0.87 |
| TSX MRP C003M | 1.75 | 1.75 | 1.78 | 1.44 | 1.88 | 0.92 | 2.00 | 0.62 |
| TSX MRP C007M | 1.75 | 1.75 | 1.70 | 1.17 | 1.56 | 0.57 | 1.40 | 0.34 |
| TSX MRP F004M | 1.75 | 1.75 | 1.78 | 1.44 | 1.88 | 0.92 | 2.00 | 0.62 |
| TSX MRP F008M | 1.75 | 1.75 | 1.70 | 1.17 | 1.56 | 0.57 | 1.40 | 0.34 |
Vida útil de la batería principal de PV6 PCMCIA (en años)
La siguiente tabla presenta la vida útil de la batería principal TSX BAT M02 (PV6) para tarjetas de memoria PCMCIA:
| PV6 | For a 25°C PLC ambient temperature | |||||||
|---|---|---|---|---|---|---|---|---|
| 100% powered up | 92% PU (30d maint. | 66% PU (WE. 30d maint. | 33% PU (12h.WE. 30d maint. | |||||
| Typical | Min | Typical | Min | Typical | Min | Typical | Min | |
| TSX MCP C 224K | 7.2 | 7.2 | 7.2 | 6.3 | 7.0 | 4.5 | 6.8 | 3.2 |
| TSX MCP C 512K | 7.2 | 7.2 | 7.2 | 6.5 | 7.0 | 5.1 | 6.8 | 3.9 |
| TSX MCP C 002M | 7.2 | 7.2 | 6.8 | 5.8 | 5.9 | 3.6 | 5.0 | 2.4 |
| TSX MRP P128K | 7.2 | 7.2 | 7.2 | 6.3 | 7.0 | 4.5 | 6.8 | 3.2 |
| TSX MRP P224K | 7.2 | 7.2 | 7.2 | 6.5 | 7.0 | 5.1 | 6.8 | 3.9 |
| TSX MRP P384K | 7.2 | 7.2 | 7.2 | 6.5 | 7.0 | 5.1 | 6.8 | 3.9 |
| TSX MRP C448K | 7.2 | 7.2 | 6.8 | 5.8 | 5.9 | 3.6 | 5.0 | 2.4 |
| TSX MRP C768K | 7.2 | 7.2 | 6.8 | 5.8 | 5.9 | 3.6 | 5.0 | 2.4 |
| TSX MRP C001M | 7.2 | 7.2 | 6.5 | 5.2 | 5.1 | 2.8 | 3.9 | 1.7 |
| TSX MRP C01M7 | 7.2 | 7.2 | 6.3 | 4.7 | 4.5 | 2.3 | 3.2 | 1.4 |
| TSX MRP C002M | 7.2 | 7.2 | 6.5 | 5.2 | 5.1 | 2.8 | 3.9 | 1.7 |
| TSX MRP C003M | 7.2 | 7.2 | 6.3 | 4.7 | 4.5 | 2.3 | 3.2 | 1.4 |
| TSX MRP C007M | 7.2 | 7.2 | 5.4 | 3.5 | 3.0 | 1.3 | 1.9 | 0.7 |
| TSX MRP F004M | 7.2 | 7.2 | 6.3 | 4.7 | 4.5 | 2.3 | 3.2 | 1.4 |
| TSX MRP F008M | 7.2 | 7.2 | 5.4 | 3.5 | 3.0 | 1.3 | 1.9 | 0.7 |
| PV6 | For a 40°C PLC ambient temperature | |||||||
|---|---|---|---|---|---|---|---|---|
| 100% powered up | 92% PU (30d maint. | 66% PU (WE. 30d maint. | 33% PU (12h.WE. 30d maint. | |||||
| Typical | Min | Typical | Min | Typical | Min | Typical | Min | |
| TSX MCP C 224K | 4.6 | 4.6 | 4.7 | 4.3 | 5.1 | 3.6 | 5.6 | 2.9 |
| TSX MCP C 512K | 4.6 | 4.6 | 4.7 | 4.4 | 5.1 | 4.0 | 5.6 | 3.5 |
| TSX MCP C 002M | 4.6 | 4.6 | 4.6 | 4.1 | 4.5 | 3.0 | 4.3 | 2.2 |
| TSX MRP P128K | 4.6 | 4.6 | 4.7 | 4.3 | 5.1 | 3.6 | 5.6 | 2.9 |
| TSX MRP P224K | 4.6 | 4.6 | 4.7 | 4.4 | 5.1 | 4.0 | 5.6 | 3.5 |
| TSX MRP P384K | 4.6 | 4.6 | 4.7 | 4.4 | 5.1 | 4.0 | 5.6 | 3.5 |
| TSX MRP C448K | 4.6 | 4.6 | 4.6 | 4.1 | 4.5 | 3.0 | 4.3 | 2.2 |
| TSX MRP C768K | 4.6 | 4.6 | 4.6 | 4.1 | 4.5 | 3.0 | 4.3 | 2.2 |
| TSX MRP C001M | 4.6 | 4.6 | 4.4 | 3.8 | 4.0 | 2.4 | 3.5 | 1.6 |
| TSX MRP C01M7 | 4.6 | 4.6 | 4.3 | 3.5 | 3.6 | 2.0 | 2.9 | 1.3 |
| TSX MRP C002M | 4.6 | 4.6 | 4.4 | 3.8 | 4.0 | 2.4 | 3.5 | 1.6 |
| TSX MRP C003M | 4.6 | 4.6 | 4.3 | 3.5 | 3.6 | 2.0 | 2.9 | 1.3 |
| TSX MRP C007M | 4.6 | 4.6 | 3.9 | 2.8 | 2.6 | 1.2 | 1.8 | 0.7 |
| TSX MRP F004M | 4.6 | 4.6 | 4.3 | 3.5 | 3.6 | 2.0 | 2.9 | 1.3 |
| TSX MRP F008M | 4.6 | 4.6 | 3.9 | 2.8 | 2.6 | 1.2 | 1.8 | 0.7 |
| PV6 | For a 50°C PLC ambient temperature | |||||||
|---|---|---|---|---|---|---|---|---|
| 100% powered up | 92% PU (30d maint. | 66% PU (WE. 30d maint. | 33% PU (12h.WE. 30d maint. | |||||
| Typical | Min | Typical | Min | Typical | Min | Typical | Min | |
| TSX MCP C 224K | 2.6 | 2.6 | 2.7 | 2.6 | 3.1 | 2.5 | 3.9 | 2.4 |
| TSX MCP C 512K | 2.6 | 2.6 | 2.7 | 2.6 | 3.1 | 2.7 | 3.9 | 2.7 |
| TSX MCP C 002M | 2.6 | 2.6 | 2.6 | 2.5 | 2.9 | 2.2 | 3.2 | 1.9 |
| TSX MRP P128K | 2.6 | 2.6 | 2.7 | 2.6 | 3.1 | 2.5 | 3.9 | 2.4 |
| TSX MRP P224K | 2.6 | 2.6 | 2.7 | 2.6 | 3.1 | 2.7 | 3.9 | 2.7 |
| TSX MRP P384K | 2.6 | 2.6 | 2.7 | 2.6 | 3.1 | 2.7 | 3.9 | 2.7 |
| TSX MRP C448K | 2.6 | 2.6 | 2.6 | 2.5 | 2.9 | 2.2 | 3.2 | 1.9 |
| TSX MRP C768K | 2.6 | 2.6 | 2.6 | 2.5 | 2.9 | 2.2 | 3.2 | 1.9 |
| TSX MRP C001M | 2.6 | 2.6 | 2.6 | 2.4 | 2.7 | 1.9 | 2.7 | 1.5 |
| TSX MRP C01M7 | 2.6 | 2.6 | 2.6 | 2.3 | 2.5 | 1.6 | 2.4 | 1.2 |
| TSX MRP C002M | 2.6 | 2.6 | 2.6 | 2.4 | 2.7 | 1.9 | 2.7 | 1.5 |
| TSX MRP C003M | 2.6 | 2.6 | 2.6 | 2.3 | 2.5 | 1.6 | 2.4 | 1.2 |
| TSX MRP C007M | 2.6 | 2.6 | 2.4 | 1.9 | 2.0 | 1.1 | 1.6 | 0.7 |
| TSX MRP F004M | 2.6 | 2.6 | 2.6 | 2.3 | 2.5 | 1.6 | 2.4 | 1.2 |
| TSX MRP F008M | 2.6 | 2.6 | 2.4 | 1.9 | 2.0 | 1.1 | 1.6 | 0.7 |
| PV6 | For a 60°C PLC ambient temperature | |||||||
|---|---|---|---|---|---|---|---|---|
| 100% powered up | 92% PU (30d maint. | 66% PU (WE. 30d maint. | 33% PU (12h.WE. 30d maint. | |||||
| Typical | Min | Typical | Min | Typical | Min | Typical | Min | |
| TSX MCP C 224K | 1.8 | 1.8 | 1.8 | 1.8 | 2.2 | 1.9 | 3.0 | 2.0 |
| TSX MCP C 512K | 1.8 | 1.8 | 1.8 | 1.8 | 2.2 | 2.0 | 3.0 | 2.2 |
| TSX MCP C 002M | 1.8 | 1.8 | 1.8 | 1.7 | 2.1 | 1.7 | 2.5 | 1.6 |
| TSX MRP P128K | 1.8 | 1.8 | 1.8 | 1.8 | 2.2 | 1.9 | 3.0 | 2.0 |
| TSX MRP P224K | 1.8 | 1.8 | 1.8 | 1.8 | 2.2 | 2.0 | 3.0 | 2.2 |
| TSX MRP P384K | 1.8 | 1.8 | 1.8 | 1.8 | 2.2 | 2.0 | 3.0 | 2.2 |
| TSX MRP C448K | 1.8 | 1.8 | 1.8 | 1.7 | 2.1 | 1.7 | 2.5 | 1.6 |
| TSX MRP C768K | 1.8 | 1.8 | 1.8 | 1.7 | 2.1 | 1.7 | 2.5 | 1.6 |
| TSX MRP C001M | 1.8 | 1.8 | 1.8 | 1.7 | 2.0 | 1.5 | 2.2 | 1.3 |
| TSX MRP C01M7 | 1.8 | 1.8 | 1.8 | 1.6 | 1.9 | 1.3 | 2.0 | 1.1 |
| TSX MRP C002M | 1.8 | 1.8 | 1.8 | 1.7 | 2.0 | 1.5 | 2.2 | 1.3 |
| TSX MRP C003M | 1.8 | 1.8 | 1.8 | 1.6 | 1.9 | 1.3 | 2.0 | 1.1 |
| TSX MRP C007M | 1.8 | 1.8 | 1.7 | 1.4 | 1.6 | 0.9 | 1.4 | 0.6 |
| TSX MRP F004M | 1.8 | 1.8 | 1.8 | 1.6 | 1.9 | 1.3 | 2.0 | 1.1 |
| TSX MRP F008M | 1.8 | 1.8 | 1.7 | 1.4 | 1.6 | 0.9 | 1.4 | 0.6 |
Vida útil mínima de la batería principal, en un PLC apagado
En un PLC apagado, la vida útil mínima de la batería principal es de 6 meses en PV6 PCMCIA.
Vida útil de la batería auxiliar
La batería auxiliar TSX BATM 03 está incluida en el producto PCMCIA. Cualesquiera que sean los casos de uso y la temperatura ambiente, la vida útil de la batería auxiliar es:
- 5 años en PV1 / 2/3
- 1.7 años en PV4 / 5
- 5 años en PV6
Publicado para:Schneider Electric Chile
Explora más
Rango:
Explora más
Rango:
