Prohledejte časté dotazy
Jaká je doporučená náhrada XPSATE, XPSATR a XPSAV za univerzální XPSU?

Article available in these languages: angličtina, Nizozemština

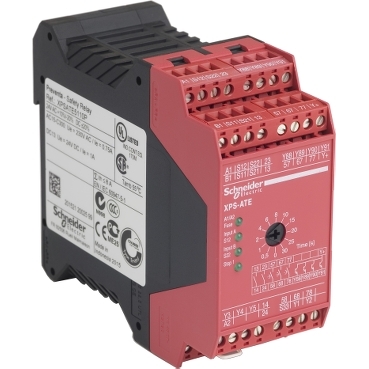

XPSATE je nahrazeno XPSUAT - 24VDC

Popis
ReferenceDoporučená náhrada
XPSATE5110XPSUAT13A3AP
XPSATE5110PXPSUAT13A3AP

Schéma pro zapojení svorek na XPSU:
Popis
XPSATE je nahrazeno XPSUAT - 115V a 230V
Popis
ReferenceDoporučená náhrada
XPSATE3410XPSUAT33A3AP
XPSATE3410PXPSUAT33A3AP
XPSATE3710XPSUAT33A3AP
XPSATE3710PXPSUAT33A3AP

Schéma pro zapojení svorek na XPSU:

Popis
Zapojení Emergency Stop u XPSATE & XPSUAT

Popis


Popis


Popis

Jednokanálové zapojení Emergency Stop u XPSATE & XPSUAT

Popis

Sériové zapojení Emergency Stop u XPSATE & XPSUAT

Popis


Popis
XPSATR je nahrazeno XPSUAT - 24DC

Popis
ReferenceDoporučená náhrada
XPSATR11530CXPSUAT13A3AC
XPSATR11530PXPSUAT13A3AP
XPSATR1153CXPSUAT13A3AC
XPSATR1153PXPSUAT13A3AP

Schéma pro zapojení svorek na XPSU:
Popis
XPSATR je nahrazeno XPSUAT - 115V a 230V

Popis
ReferenceDoporučená náhrada
XPSATR39530CXPSUAT33A3AC
XPSATR39530PXPSUAT33A3AP
XPSATR3953CXPSUAT33A3AC
XPSATR3953PXPSUAT33A3AP

Schéma pro zapojení svorek na XPSU:
Popis
Zapojení Emergency Stop u XPSATR & XPSUAT

Popis

Jednokanálové zapojení Emergency Stop u XPSATR & XPSUAT

Popis

Popis

Zapojení Emergency Stop u XPSATR & XPSUAT

Popis


Popis

Zapojení Safety Light Curtains (světelné závory) u XPSATR & XPSUAT

Popis


Popis

XPSAV je nahrazeno XPSUAT


Popis
ReferenceDoporučená náhrada
XPSAV11113XPSUAT13A3AP
XPSAV11113PXPSUAT13A3AP
XPSAV11113T050XPSUAT13A3AP
XPSAV11113Z002XPSUAT13A3AP

Schéma pro zapojení svorek na XPSU:
Popis
Zapojení Emergency Stop u XPSAV & XPSUAT

Popis
Jednokanálové zapojení Emergency Stop u XPSAV & XPSUAT

Popis

Popis

Zapojení Safety Switch u XPSAV & XPSUAT
Popis

CAUTION

The information provided in this documentation contains general descriptions and/or technical characteristics of the performance of the products contained herein. This documentation is not intended as a substitute for and is not to be used for determining suitability or reliability of these products for specific user applications. It is the duty of any such user or integrator to perform the appropriate and complete risk analysis, evaluation and testing of the products with respect to the relevant specific application or use thereof. Neither Schneider Electric nor any of its affiliates or subsidiaries shall be responsible or liable for misuse of the information contained herein. If you have any suggestions for improvements or amendments or have found errors in this publication, please notify us.

You agree not to reproduce, other than for your own personal, noncommercial use, all or part of this document on any medium whatsoever without permission of Schneider Electric, given in writing. You also agree not to establish any hypertext links to this document or its content. Schneider Electric does not grant any right or license for the personal and noncommercial use of the document or its content, except for a non-exclusive license to consult it on an "as is" basis, at your own risk. All other rights are reserved.

All pertinent state, regional, and local safety regulations must be observed when installing and using this product. For reasons of safety and to help ensure compliance with documented system data, only the manufacturer should perform repairs to components.

When devices are used for applications with technical safety requirements, the relevant instructions must be followed.

Failure to use Schneider Electric software or approved software with our hardware products may result in injury, harm, or improper operating results.

Failure to observe this information can result in injury or equipment damage.

© 2021 Schneider Electric. All rights reserved.

Schneider Electric Česká republika

Přílohy
XPSUAT, ATE, ATR, AV.pdf [1.76 MB]
