Where can I get the cable pinouts for the CanOpen connector for the Altivar Process Drive?

Issue:
Altivar Process Drive CanOpen connector pinouts cables.

Product Line:
Altivar Process Drive (ATV630, ATV930, ATV650, ATV950, ATV660, ATV960, ATV680, ATV980)

Environment:
All serial numbers for Altivar Process Drive

Cause:
N/A

Resolution:
Pin Layout of VW3A3608

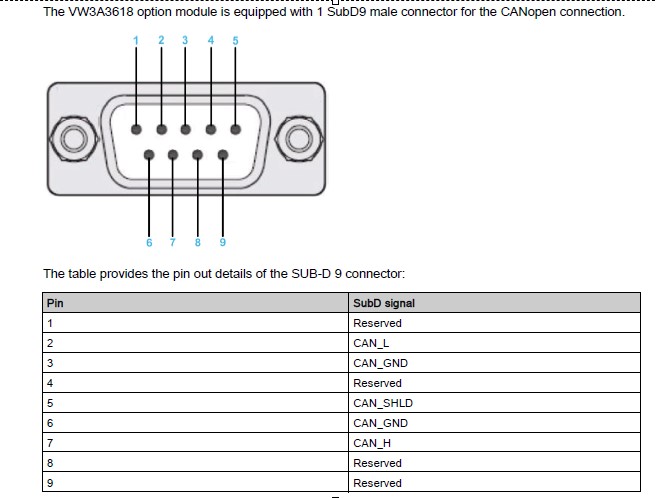

Pin Layout of VW3A3618



Pin Layout of VW3A3628​
