How to start simulator with EcoStruxure Automation Expert (IEC 61499)

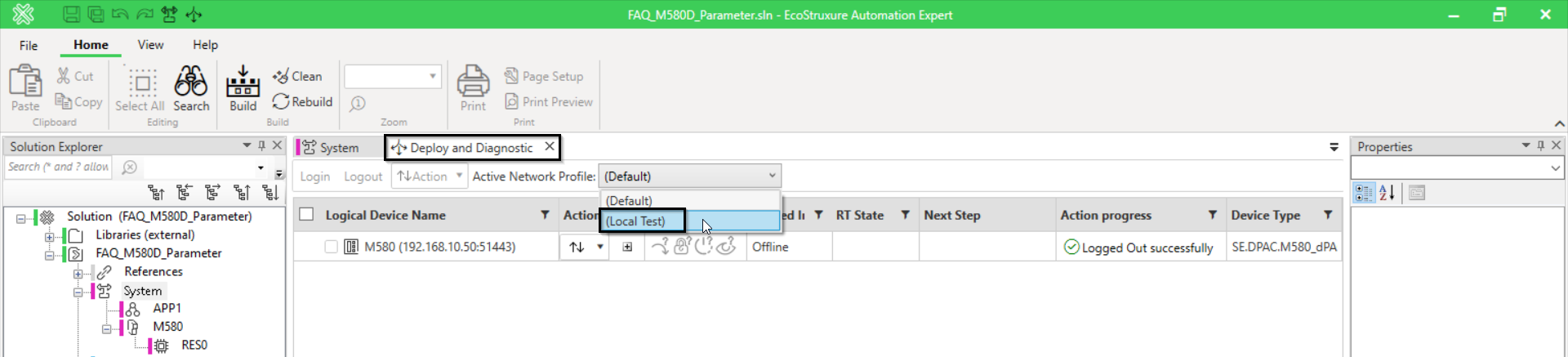

• Deploy and Diagnostic: select Local Test (example with M580_dpac device)

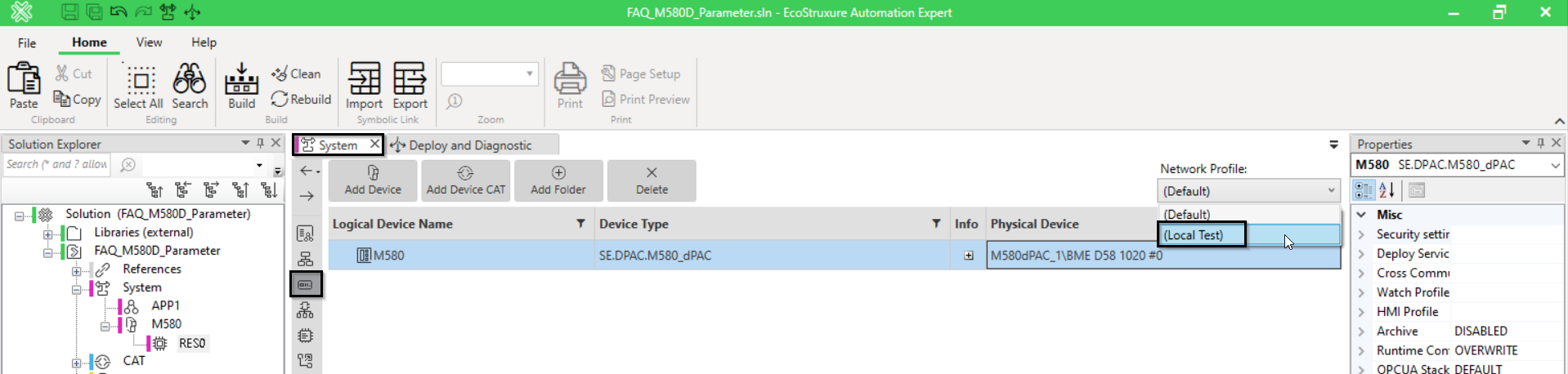

• System: Logical Device: select Local Test

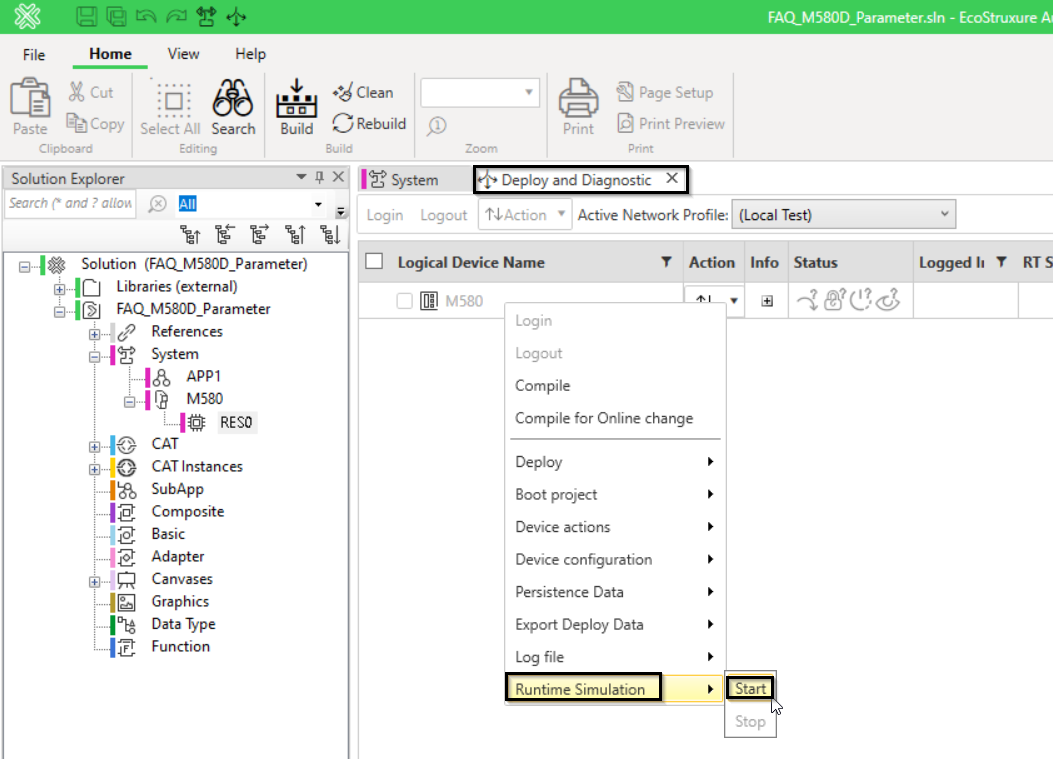

• Start Runtime Simulation

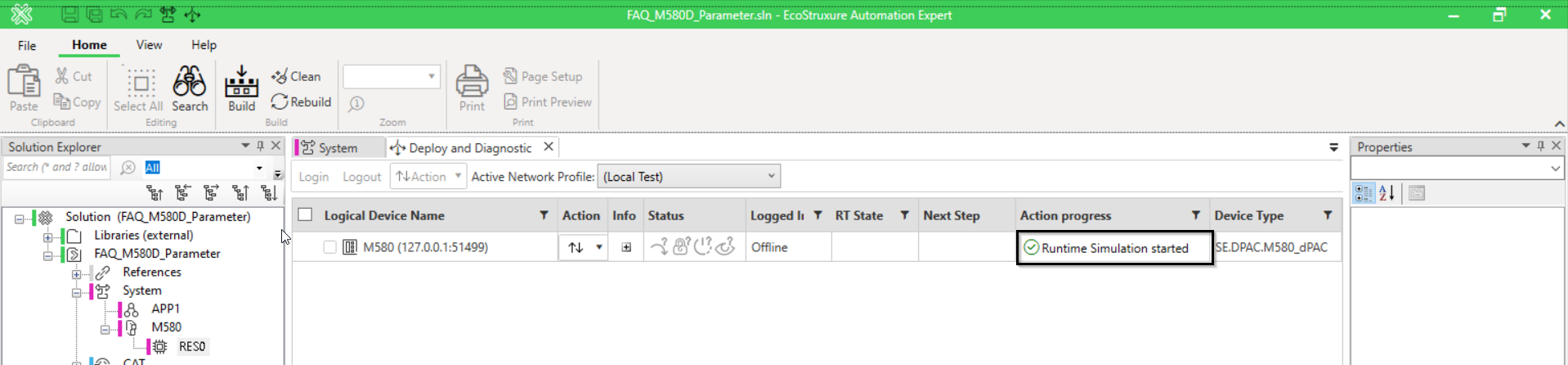

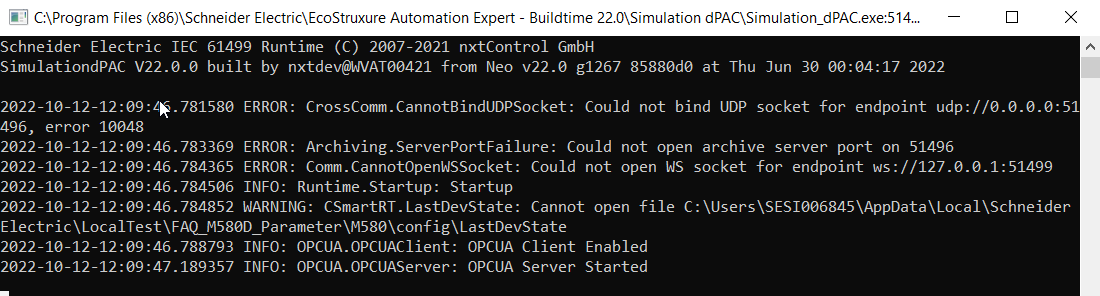

• Runtime Simulation Started

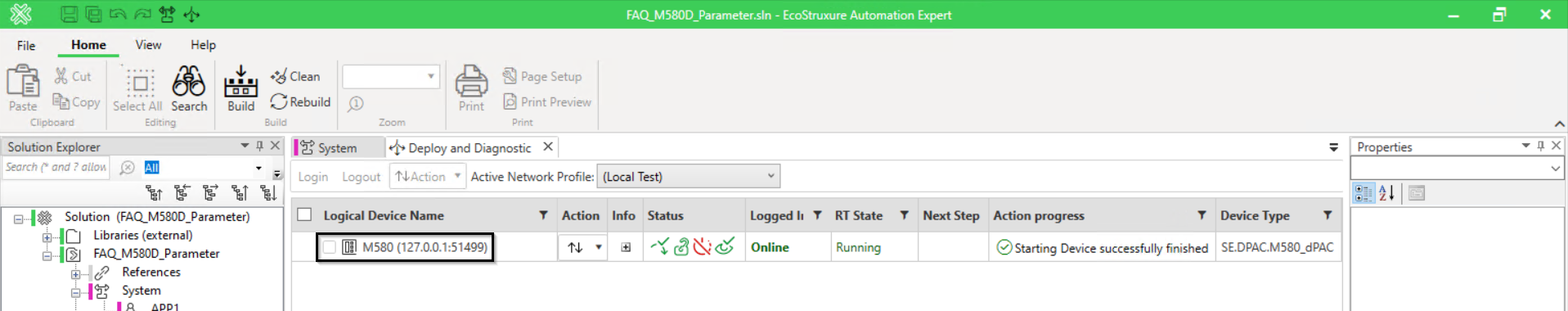

• Compile -> Login -> Deploy -> RUN

Note: IP address of simulator: 127.0.0.1:51499


Product line:
EAE, Runtime Simulation, BMED581020, IEC 61499

Environment:
Windows, EcoStruxure Automation Expert 22.0
