What do the LED indicators on the ATV340 drives mean?

Issue:
Meaning of the LED on ATV340

Product line:
ATV340

Environment:
All models, all serial numbers.

Cause:
Clarification of product features.

Resolution:

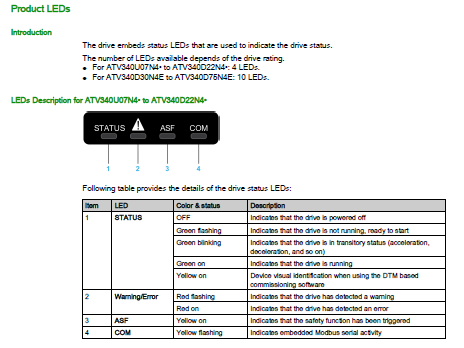

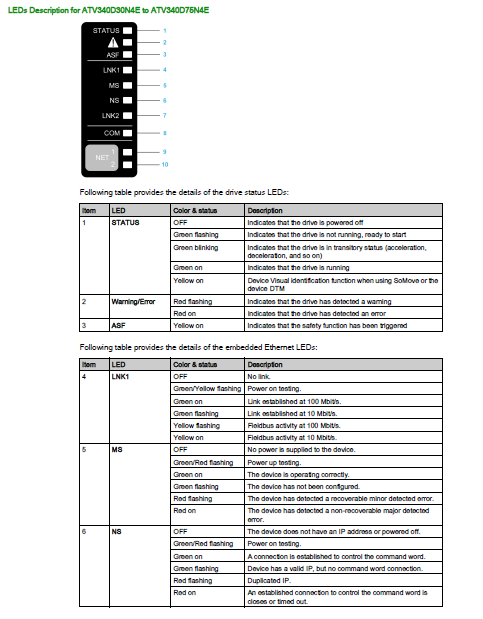

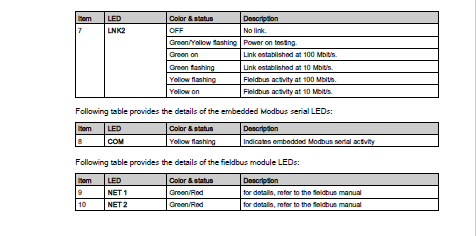

There are two sets of LEDs available, depending on the part number of the drive.  See the diagrams below for details:
