The SCADAPack 334 with 5607 I/O module is comprised of four types of I/O channels, digital inputs, digital outputs, analog inputs, and analog outputs.
The digital input assignment provides twenty four I/O channels for the digital input data from the SCADAPack 5607 I/O Module hardware. The digital input registers are updated continuously with data read from the digital inputs.
The 5607 I/O Module provides sixteen external digital inputs. These are externally wetted inputs.
The module provides 8 internal digital inputs, which indicate if the corresponding analog input is in or out of range.
See Configuration Example below:Publicado para:Schneider Electric Mexico
The SCADAPack 334 with 5607 I/O module is comprised of four types of I/O channels, digital inputs, digital outputs, analog inputs, and analog outputs.
The digital input assignment provides twenty four I/O channels for the digital input data from the SCADAPack 5607 I/O Module hardware. The digital input registers are updated continuously with data read from the digital inputs.
The 5607 I/O Module provides sixteen external digital inputs. These are externally wetted inputs.
The module provides 8 internal digital inputs, which indicate if the corresponding analog input is in or out of range.

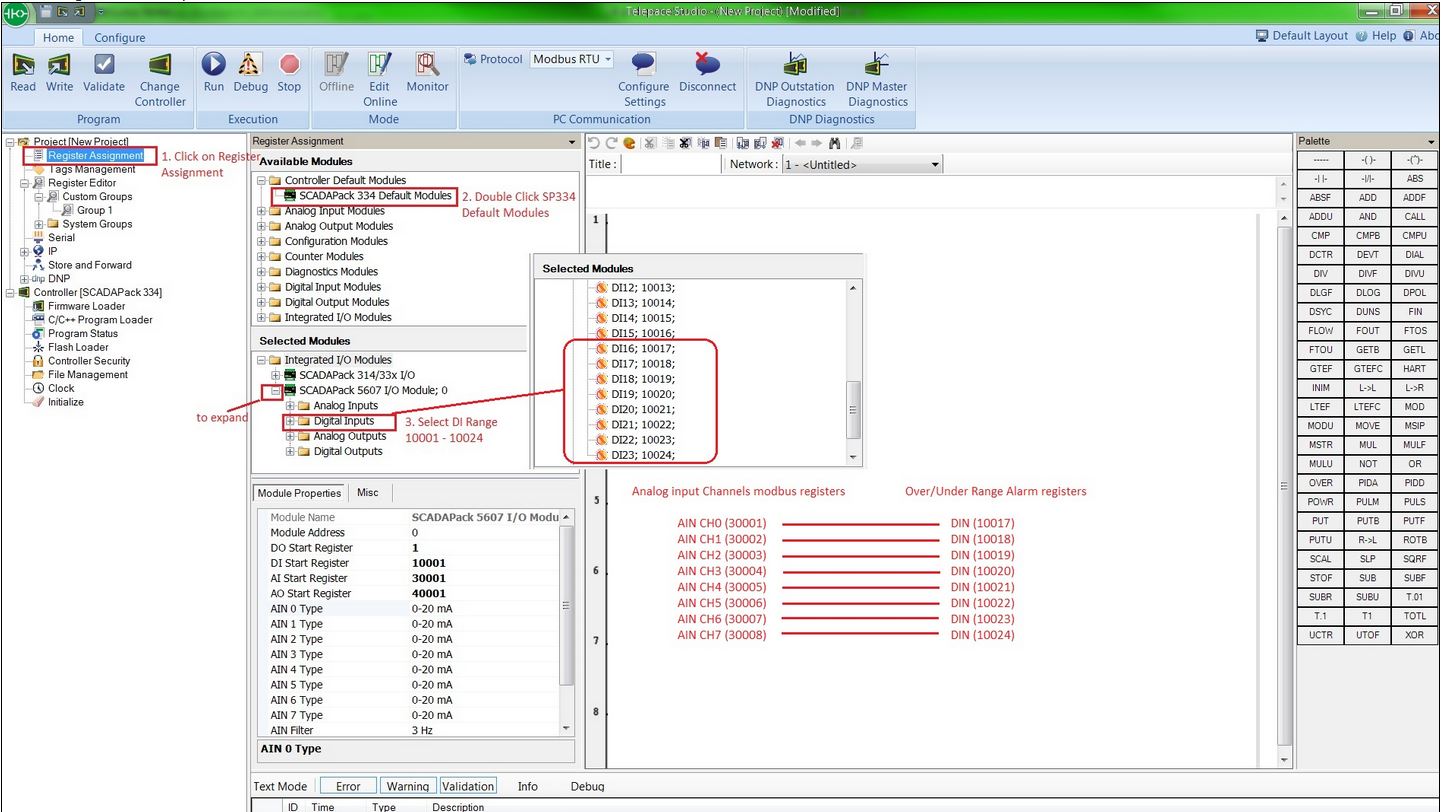

See Configuration Example below:
