What is the center line dimension for the bolt holes on a flange for a VB-9223-0-5-13 , 3" Globe valve?

Issue:
What is the bolt hole center line dimensions on a flange for a VB-9223-0-5-13 , 3" Globe valve, or any 3" Flange ?

Product Line:
Valves and Actuators

Environment:
Installation

Cause:
Dimensions

Resolution:

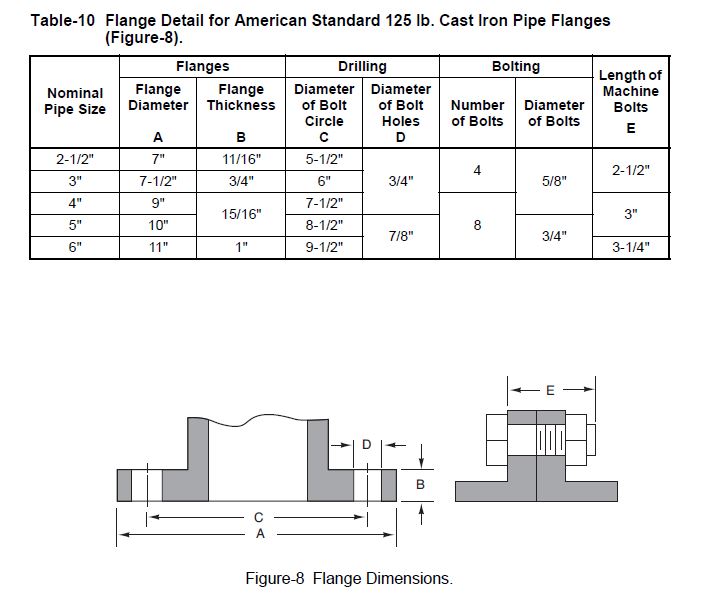

The Flange on a 3" globe valve is 6" across flange and would be the same for ALL of our 3" valve bodies we manufacture.
