Issue:
Looking for a way to extract or set a bit within a word.
Product Line:
SoMachine, EcoStruxure Machine Expert
Resolution:

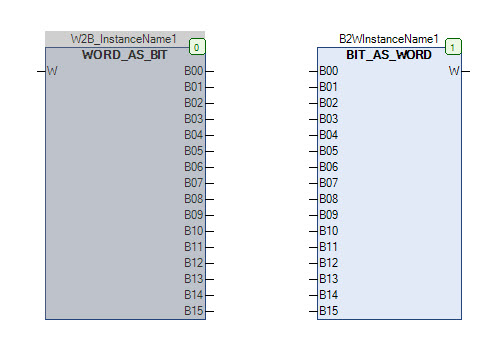

Sometimes it becomes necessary to extract or set a bit within a word.

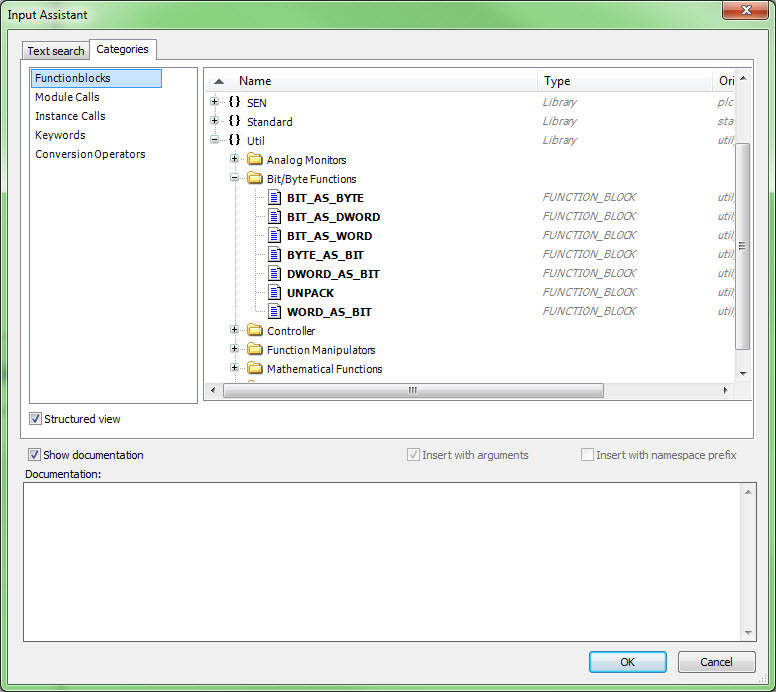

Those function blocks can be found under the Functionblocks section under Bit/Bytes Functions of SoMachine V4.3. Or you can simply type in WORD_AS_BIT or BIT_AS_WORD on the empty box.
The block also have to have a unique instance name.
Looking for a way to extract or set a bit within a word.
Product Line:
SoMachine, EcoStruxure Machine Expert
Resolution:
Sometimes it becomes necessary to extract or set a bit within a word.
Those function blocks can be found under the Functionblocks section under Bit/Bytes Functions of SoMachine V4.3. Or you can simply type in WORD_AS_BIT or BIT_AS_WORD on the empty box.
The block also have to have a unique instance name.
