How do I diagnose the channel and module status of the BMEAHI0812 and BMEAHO0412 Hart modules

Buscar Preguntas Frecuentes

Issue:
Diagnostic LED for the BMEAHI0812 and BMEAHO0412 Hart modules

Product Line:
BMEAHI0812, BMEAHO0412

Resolution:

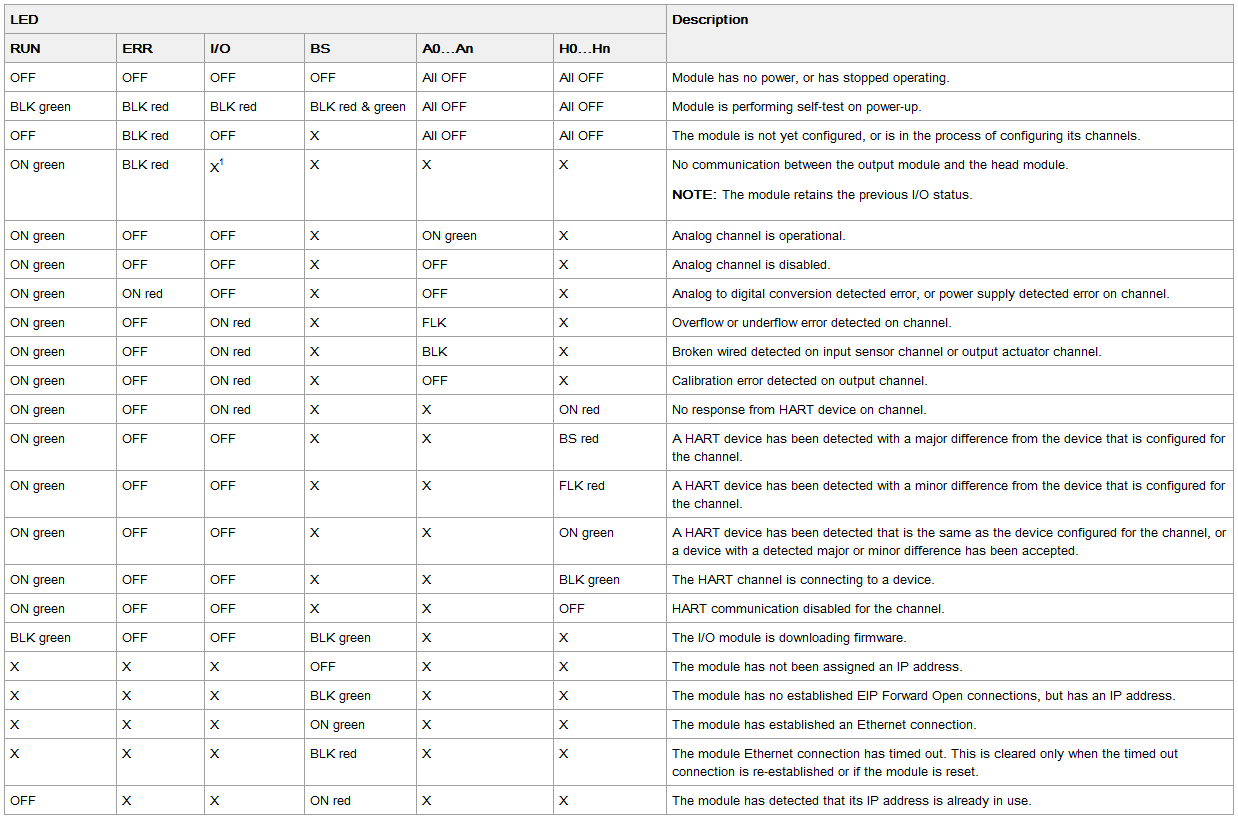

Use the combined states of the RUN, ERR, I/O, BS, An and Hn LEDs to diagnose the channel and module status for the BMEAHI0812 and BMEAHO0412 modules:
Hart
