How to change M580 model in project.

Issue

Will be replacing an existing M580 with a newer one that is a different model. How can the model of the existing program be changed?

Product Line

Modicon M580, Control Expert, Unity Pro

Resolution

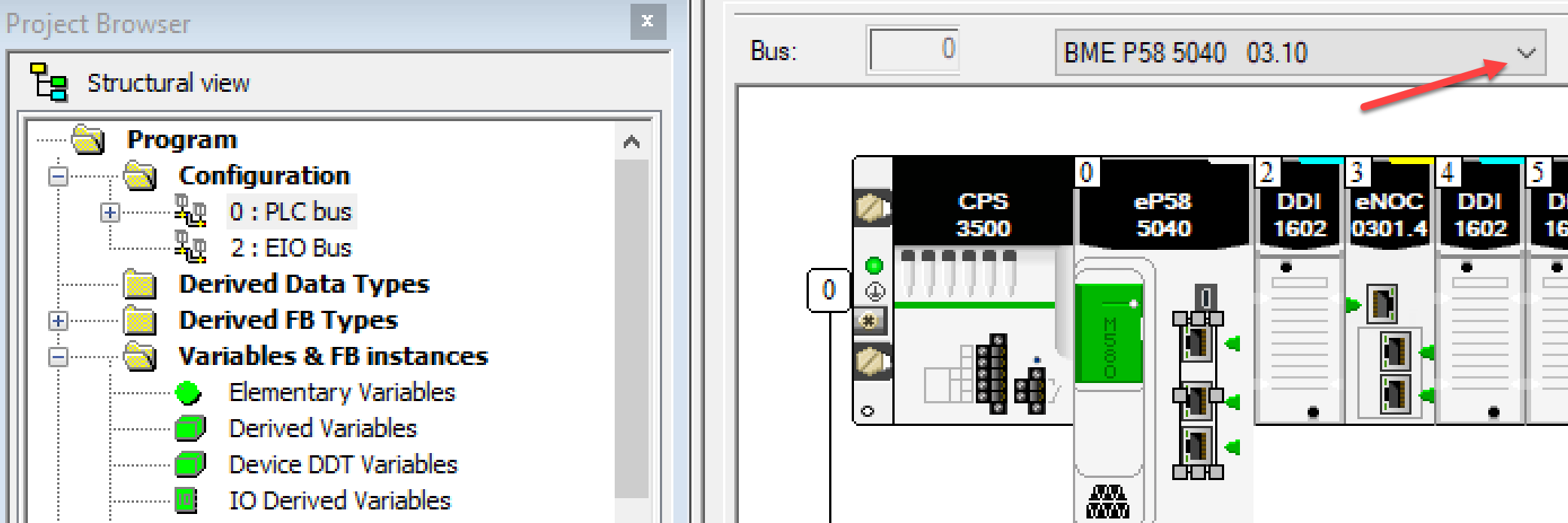

If from the Project Browser you double click on the PLC bus it will open a graphical window. At the top of that window you will see the M580 model number above the backplane. To the right of the model number is a pulldown where you can select your new model and firmware revision. See graphic below indicating the pulldown button.
