What is the cable pinout between the M340 serial port and Com1 of the HMIGTO HMI?

Issue:
Cable pinout between M340 and HMIGTO com port 1


Product Line:
M340, HMIGTO


Resolution:

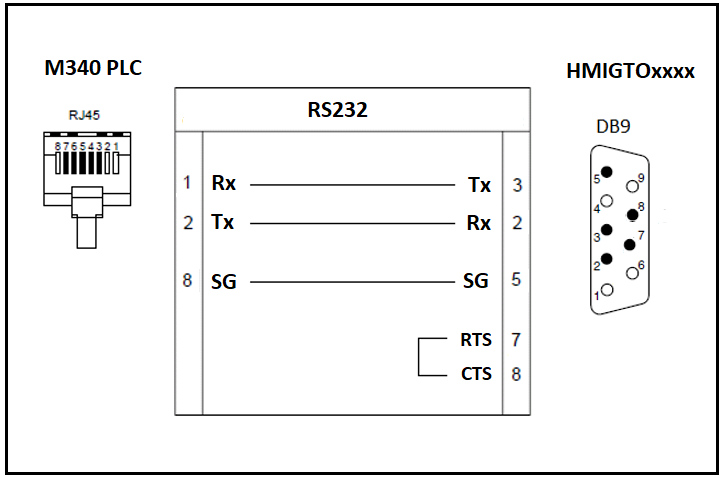

The cable pinout between the M340 PLC embedded serial port configured for RS232 and the HMIGTO Com 1 is shown below
