Always install (AS, AS-P, AS-B, I/O modules, and PS-24) on a horizontal DIN rail. This position provides sufficient cooling airflow through the device. Installation on a vertical DIN rail can reduce
the life span of the device.
AS/AS-P:

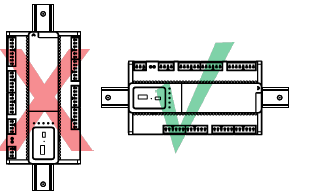

AS-B:
