How should the wiring be managed in case of 2 phase or 3 phase circuits using MAXBAR?

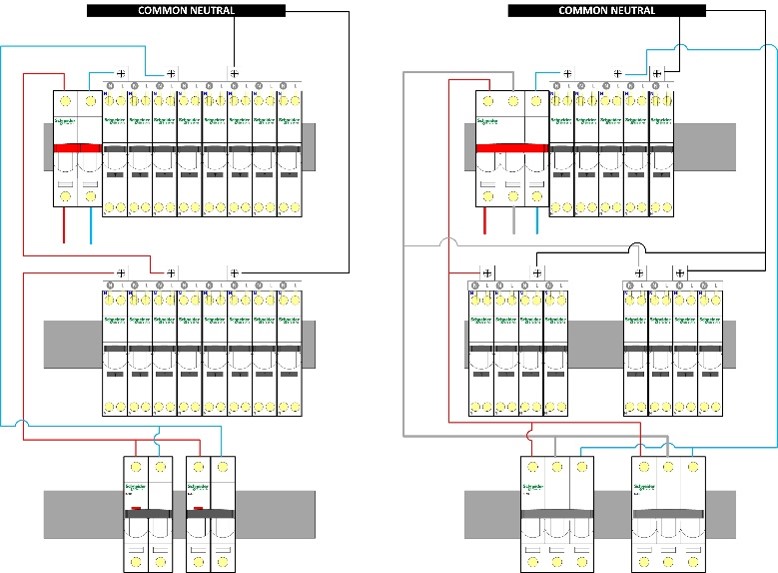

2 phase or 3 phase circuits cannot directly be connected through a MAXBAR, however, connections can still be made as shown in the images.

Resi9 faq5

Resi9 faq5

Released for:Schneider Electric New Zealand

Published on:16/02/2024Last Modified on:16/02/2024

Product:

R9XPN115N

R9XPN115

Product:

R9XPN115N

R9XPN115
