How do you send Input/Output links to the back in Designer (ION/SPM/PME)?

Issue
How do you send Input/Output links to the back in Designer (ION/SPM/PME)?

Product Line
Power Monitoring Expert 8.x (PME 8)
Power Monitoring Expert 7.2.x (PME 7.2.x)
Struxureware Power Monitoring 7.0.x (SPM 7.0.x)

ION Enterprise 6.0.x

Environment
Designer Module view of Input/Output Linkage

Cause
Links are in front of diagram objects and they want to be moved to make it easier to see the objects

Resolution
When working in Designer you can press Ctrl+B to send all links to the back.

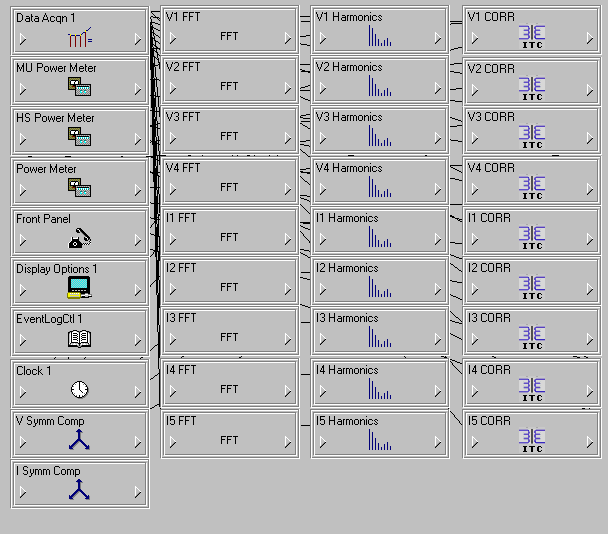

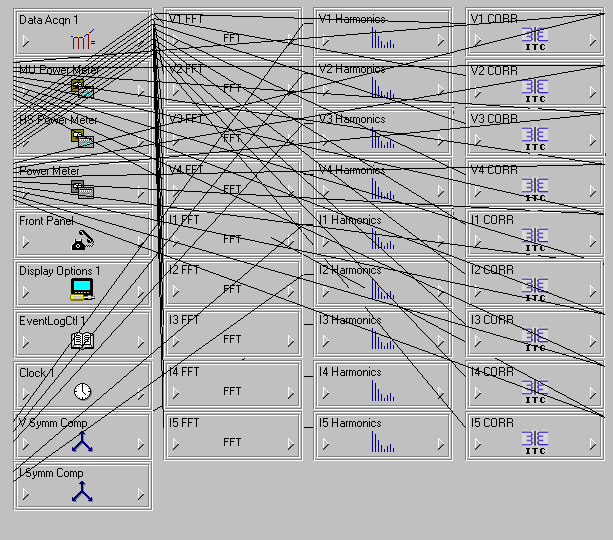

Below are examples of before and after sending the links to the back:
