How to wire SCADAPack 300 to Accutech BR10 MOD port for RS-485 communication?

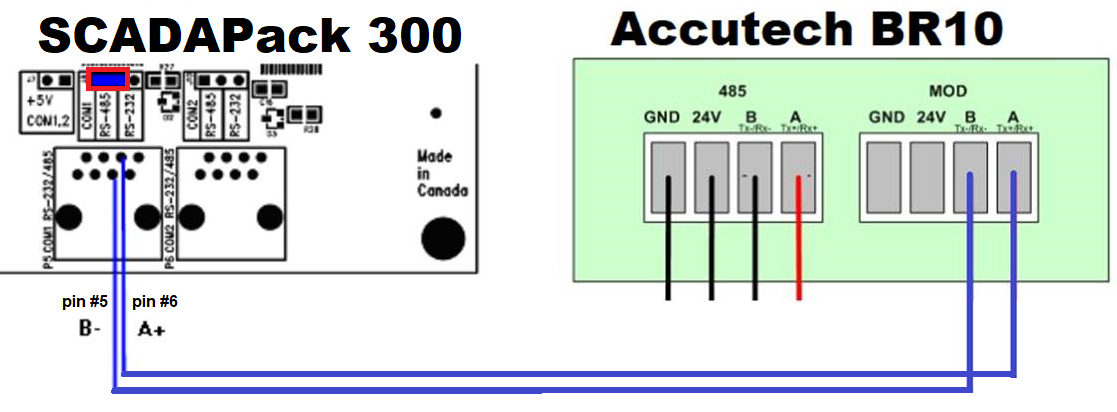

Use the connection diagram below to wire the Accutech BR10 Base Radio for your SCADAPack 300 (330, 334, 350, 357, ...).
