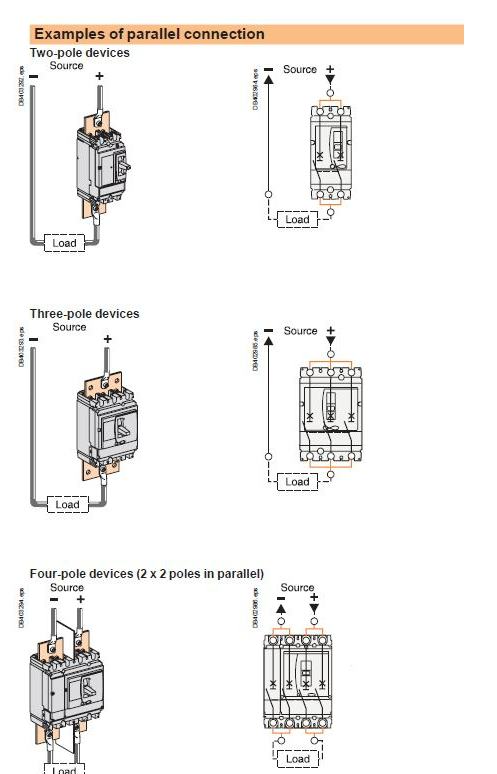

Series connection of poles divides the voltage per pole and optimises breaking capacity for high-voltage systems.
But parallel connection of poles divides the current per pole and optimises the rated current for systems that do not exceed the withstand voltage of each pole.
The maximum useable rating and the value of the magnetic setting are indicated.
