How do I connect a CANopen cable, ref TSXCANCAxxx, to a VW3CANTAP2 junction box?

The TSXCANCAxxx CANopen cable is connected to the VW3CANTAP2 junction box as follows:

Pin 1: Black - GND
Pin 2: Blue - CAN_L
Pin 3: Shielding of cable without connectors - SHLD
Pin 4: White - CAN_H
Pin 5: Red - optional power supply

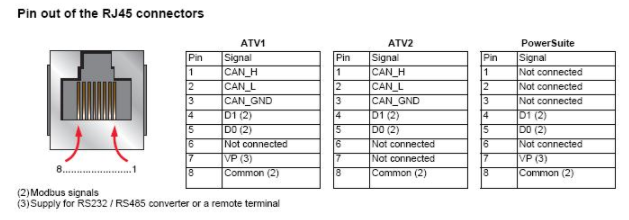

Pinout

Pinout

Rf45Pinout

Released for:Schneider Electric UK

Published on:11/26/2010Last Modified on:10/29/2024

::
