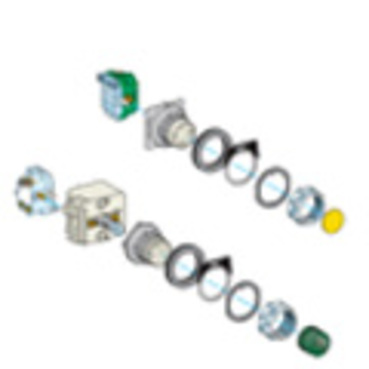

In the 9001K joysticks, the contact block to use will be different according with the type of movement.
- 3 positions horizontal movement joysticks such as 9001K30 to 9001K33 will require the contact 9001KA3
- 3 positions vertical movement joysticks such as 9001K70 to 9001K73 will require the contact 9001KA2
- 5 positions joystick like such as 9001K34 to 9001K37 will require the contact 9001KA1
More details on Table 1 (page 2) of the instruction:
https://download.schneider-electric.com/files?p_Doc_Ref=65013-001-21&p_enDocType=Instruction%20sheet
- 3 positions horizontal movement joysticks such as 9001K30 to 9001K33 will require the contact 9001KA3
- 3 positions vertical movement joysticks such as 9001K70 to 9001K73 will require the contact 9001KA2
- 5 positions joystick like such as 9001K34 to 9001K37 will require the contact 9001KA1
More details on Table 1 (page 2) of the instruction:
https://download.schneider-electric.com/files?p_Doc_Ref=65013-001-21&p_enDocType=Instruction%20sheet
Released for:Schneider Electric UK
