How many modules of devices(MCBs, RCBOs, AFDDs) can be fitted on Isobar P – Hybrid or Standalone Active distribution boards? & What all devices are suitable?

How can we help you today?

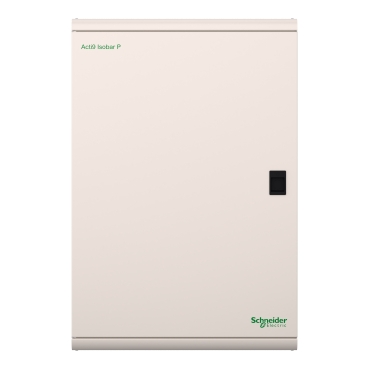

Acti9 Disbo iC60 MCBs (1P & 3P), Acti9 RCBOs (PoN type) & Acti9 Active AFDDs (iCV40H) can be fitted on Isobar P – Hybrid or Standalone Active distribution boards. The number is detailed in the table below

Table showing Number of AFDD ways and Number of triple pole ways per Isobar P board
Part Reference	No. of AFDD ways	No. of Triple Pole ways
SEA9BPN8AFD6	6	8
SEA9BPN14AFD6	6	14
SEA9BPN10AFD12	12	10
SEA9BPNAFD12	12	n/a
SEA9BPNAFD24	24	n/a
SEA9BPNAFD36	36	n/a

Released for:Schneider Electric UK

Published on:6/27/2022Last Modified on:2/18/2025
