Board Selection:
AFDDS for the range
See attached document Multirow Parts list
| Reference | Description | Total Ways | Usable ways |
| EZ9E10MCCU | 1 Row, 12 modules | 12 | 10 |
| EZ9E12MCCU | 1 Row, 14 modules | 14 | 14 |
| EZ9E16MCCU | 1 Row, 18 modules each | 18 | 16 |

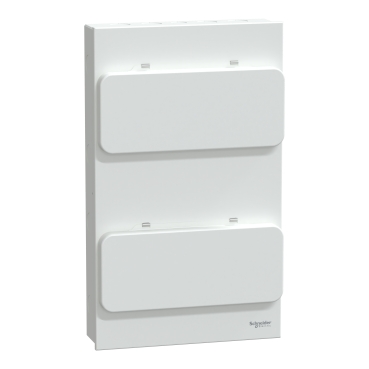

| EZ9E212MCCU | 2 Row, 12 modules each | 24 | 22 |

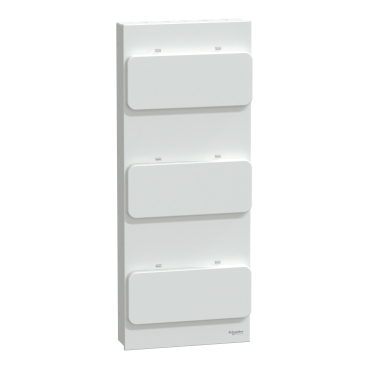

| EZ9E312MCCU | 3 Row, 12 modules each | 36 | 34 |
| Reference | Height mm | Width mm | Depth mm |
| EZ9E10MCCU | 243 | 312 | 112 |
| EZ9E12MCCU | 243 | 347 | 112 |
| EZ9E16MCCU | 243 | 407 | 112 |
| EZ9E212MCCU | 523 | 313 | 112 |
| EZ9E312MCCU | 781 | 313 | 112 |
Accessories:
Reference | Description |
| SEPNB112 | AFDD Phase Neutral Comb Busbar 12 Modules,100A |
| EZ9TB1001 | Easy9 100A Terminal Block |
| EZ9CCUCABLEKIT1 | Split Load Cable Kit for 10 way / 12 way CCU |
| EZ9CCUCABLEKIT2 | Split Load Cable Kit for 16 way CCU |
| EZ9CCUCABLEKITMR | Inter row Cable Kit for Multirow |
AFDDS for the range
| Reference | Description | Rating |
| EZ9TDA7606 | MCB / RCBO / AFDD / MSU | 6A |
| EZ9TDA7610 | MCB / RCBO / AFDD / MSU | 10A |
| EZ9TDA7616 | MCB / RCBO / AFDD / MSU | 16A |
| EZ9TDA7620 | MCB / RCBO / AFDD / MSU | 20A |
| EZ9TDA7632 | MCB / RCBO / AFDD / MSU | 32A |
| EZ9TDA7640 | MCB / RCBO / AFDD / MSU | 40A |
See attached document Multirow Parts list
Released for:Schneider Electric UK
