Short-circuit current rating (SCCR) and series rating information for panelboards and load centers

How can we help you today?

Issue:
Series Ratings

Product Line:
NQ, NF, I-Line Panelboards and QO, Homelines loadcenters

Resolution:
See data bulletins 2700DB9901 (attached; for panelboards) and 4100DB0301 (for load centers) for detailed information regarding the SCCR in panelboards and load centers. The beginning of section 9 of the Online Digest also shows many tested combinations of breaker pairs and fuses ahead of breakers. There may be other combinations of overcurrent protection (involving PowerPacT breakers, etc.) that series rate in addition to those listed on these tables.

Released for:Schneider Electric USA

Attachment(s)

4100DB0301 - Load Center Series rating.pdf [2.31 MB]

2700DB9901R407 - Panelboard Series Rating.pdf [479.63 KB]

Published on:8/1/2014Last Modified on:5/8/2025

Range:

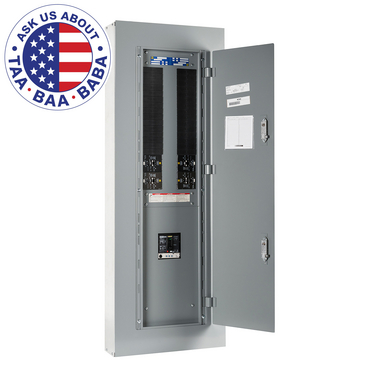

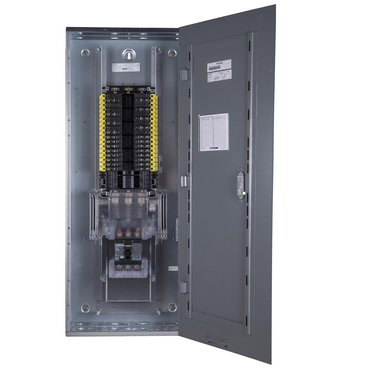

NF Panelboards

I-Line Power Distribution Panelboards

QMB Fusible Power Distribution Panelboards

MVP- NQ Panelboards

Homeline Standard Load Centers

Range:

NF Panelboards

I-Line Power Distribution Panelboards

QMB Fusible Power Distribution Panelboards

MVP- NQ Panelboards

Homeline Standard Load Centers
