SCADAPack 32 serial port COM1 pinout for RS-232 and RS-485?

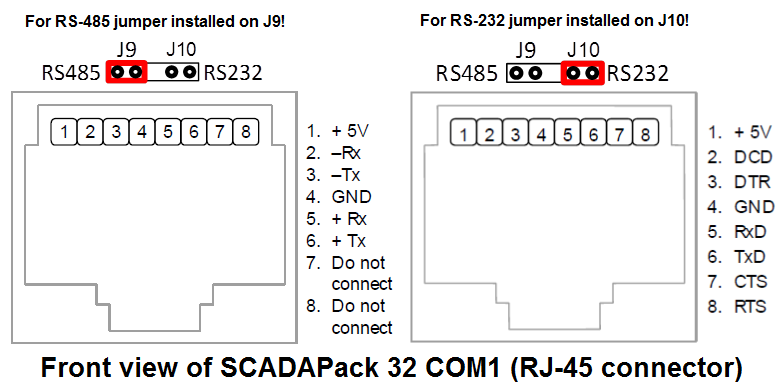

The diagram below shows the pin connections for the COM1 (RJ-45) port connector for RS-232 and RS-485.

Released for:Schneider Electric USA

Explore more
Range:
SCADAPack 300, 32
