Where can a Port piping diagram for the Barber Colman HUPE and HSP Pneumatic control panels be found?

How can we help you today?

Issue:
Is there information for the Barber Colman HUP Econoflow Pneumatic panels available?

Product Line:
Pneumatic Panels

Environment:
Installation

Cause:
Instructions

Resolution:

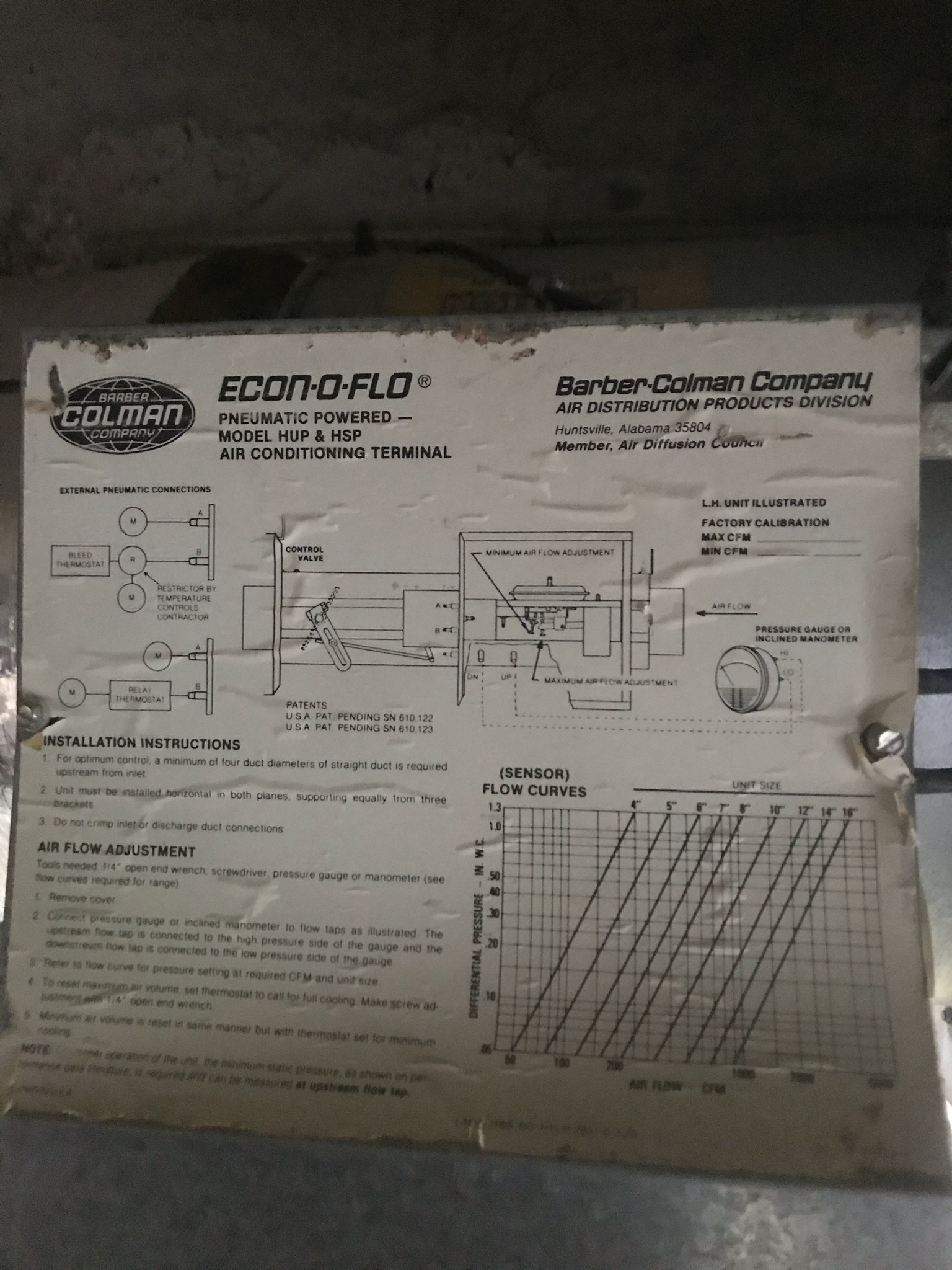

The document attached has the Port designations and bleed off designations listed. This is the only Original document found and belonged to an old Barber Colman Group for support, which was sold over 30 yrs ago .

Air Systems Components can be reached at 800-666-0791 for support, as well as CARNES at 608-845-6411 for more Port and Parts information .
