Issue:

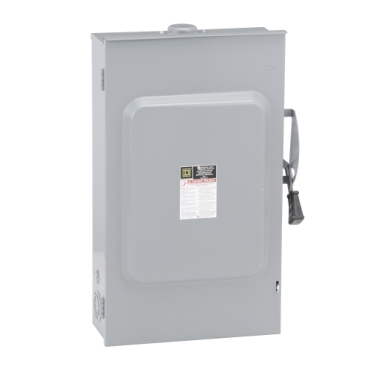

What are the repair parts for D224NRB, Series F1(may be shown as F01)?
Product Line:
Safety Switch
Environment:
General Duty Safety Switch
Resolution:
The replacement parts for the D224NRB, series F1 (F01) are as follows. No other parts are available.
Complete Line Base -4056702950 (requires one line base per switch - includes phenolic base, arc suppressors, lugs, rotor, switching blades, and fuse clips if applicable)
Line Base mounting screws - 4020546401 (requires 6 per line base)
Load Base Assembly - 4056677450 (requires one per phase - includes phenolic base, lugs and fuse clips)
Load Base mounting screws - 4020546401 (requires 2 per load base)
Arc Suppressor Assembly - 4053922001(requires one per phase)
Arc Suppressor mounting screw - 4020514501
Lug Assembly - 4025116251 (per lug)
Lug Assembly mounting screw - 2140122240
Switch Mechanism - 4056678450 (also requires Interlock Shaft Gasket (4056786001)
Switch Mechanism mounting screws - 2299940562 (requires 2)
Handle Assembly - 4056686250 (requires handle gasket 4056608601)
Lockplate - 4056685701
Lockplate mounting screws - 2299940562 (requires 2)
Neutral Assembly - SN20A
Neutral Bonding Screw - 4028356651
Cover latch and spring - one each of 4056607201 (latch) and 4022304301 (spring)
What are the repair parts for D224NRB, Series F1(may be shown as F01)?
Product Line:
Safety Switch
Environment:
General Duty Safety Switch
Resolution:
The replacement parts for the D224NRB, series F1 (F01) are as follows. No other parts are available.
Complete Line Base -4056702950 (requires one line base per switch - includes phenolic base, arc suppressors, lugs, rotor, switching blades, and fuse clips if applicable)
Line Base mounting screws - 4020546401 (requires 6 per line base)
Load Base Assembly - 4056677450 (requires one per phase - includes phenolic base, lugs and fuse clips)
Load Base mounting screws - 4020546401 (requires 2 per load base)
Arc Suppressor Assembly - 4053922001(requires one per phase)
Arc Suppressor mounting screw - 4020514501
Lug Assembly - 4025116251 (per lug)
Lug Assembly mounting screw - 2140122240
Switch Mechanism - 4056678450 (also requires Interlock Shaft Gasket (4056786001)
Switch Mechanism mounting screws - 2299940562 (requires 2)
Handle Assembly - 4056686250 (requires handle gasket 4056608601)
Lockplate - 4056685701
Lockplate mounting screws - 2299940562 (requires 2)
Neutral Assembly - SN20A
Neutral Bonding Screw - 4028356651
Cover latch and spring - one each of 4056607201 (latch) and 4022304301 (spring)
Released for:Schneider Electric USA
