Our latest SM6 MV switchgear features 24/7 connectivity giving you unparalleled visibility of your equipment’s health status. Allowing you to increase uptime whilst reducing maintenance costs and risks.
Features
Part of our Set series of MV equipment and the result of over 25 years of experience, our EcoStuxure-ready SM6 switchgear takes substation monitoring to the next level. Identify poor quality electrical connections faster with thermal monitoring, extend your equipment’s lifespan with environmental monitoring or gather data on circuit breaker performance. Have all the information at your fingertips for unparalleled visibility to ensure your equipment running and reduce maintenance expenses.
Benefits
● 24/7 connectivity enables real-time data for effective decision making
● Reduced downtime and optimized maintenance costs
● Reduced risks for staff and equipment with internal arc flash detection and nearby operation
See the SM6 connected in action:

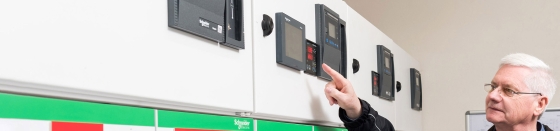

UCB Farchim Pharma discovered less unplanned downtime and saved time and money on maintenance operations. Watch the video
SM6 Connected Enabled
Use nearby thermal monitoring with embedded wireless sensors to provide status of your cable connections. Easergy Thermal Connect mobile application (available on Android devices only) is a simple and cost-effective way to start using thermal monitoring.
Did you know up to 25% of all cable failures are due to loose connections or contaminated surfaces? Reduce unplanned downtime and detect hot-spots earlier with on-demand monitoring.
Did you know up to 25% of all cable failures are due to loose connections or contaminated surfaces? Reduce unplanned downtime and detect hot-spots earlier with on-demand monitoring.
-
QR code access
1Fast and simple access to equipment data and documentation at your fingertips. -
Thermal monitoring
224/7 connected monitoring to highlight hotspots and take preventive action. -
Easergy Thermal Connect app
3Simple-to-use app to read thermal data from sensors, available for free on the Google Play store.
QR code access
1Fast and simple access to equipment data and documentation at your fingertips.
Thermal monitoring
224/7 connected monitoring to highlight hotspots and take preventive action.
Easergy Thermal Connect app
3Simple-to-use app to read thermal data from sensors, available for free on the Google Play store.
SM6 Connected Enabled Plus
When power availability is critical to your business needs, fully 24/7 connected condition monitoring helps to avoid unplanned downtime. Additional sensors and embedded algorithms analyze data from circuit breakers, thermal or environmental sensors to provide the overall health status. This monitoring provides alarms and recommendations to advise you know when maintenance is required. Also, enabled plus solutions are flexible, they can combine with Trihal connected transformers or provide enhanced safety for operation and maintenance with internal arc detection and nearby control functionality.
Benefits:
● 24/7 connected sensors provide early detection of hot-spots, condensation or CB health
● Accurately plan maintenance based on alarms or recommendations
● Enhanced safety through nearby control and ultra-fast arc flash detection
Benefits:
● 24/7 connected sensors provide early detection of hot-spots, condensation or CB health
● Accurately plan maintenance based on alarms or recommendations
● Enhanced safety through nearby control and ultra-fast arc flash detection
-
Substation monitoring device
1Collects IoT data from smart sensors and provides meaningful information to the local monitoring HMI or remote connections. -
Circuit breaker monitoring
2Monitoring of circuit breaker wear, for preventive maintenance. -
Thermal monitoring
324/7 connected monitoring to highlight hotspots (for example faulty cable termination) and take preventive action. -
Nearby control and monitoring
4Use a smartphone to tablet to view information or operate switchgear from a nearby, safer distance by wireless communication. -
Arc fault detection
5Helps to detect and clear arcs faster, making the installation safer, reducing downtime and damage to the equipment. -
QR code access
6Fast and simple access to equipment data and documentation at your fingertips. -
Environment monitoring
724/7 connected monitoring to highlight condensation enabling users to prevent fast aging.
Substation monitoring device
1Collects IoT data from smart sensors and provides meaningful information to the local monitoring HMI or remote connections.
Circuit breaker monitoring
2Monitoring of circuit breaker wear, for preventive maintenance.
Thermal monitoring
324/7 connected monitoring to highlight hotspots (for example faulty cable termination) and take preventive action.
Nearby control and monitoring
4Use a smartphone to tablet to view information or operate switchgear from a nearby, safer distance by wireless communication.
Arc fault detection
5Helps to detect and clear arcs faster, making the installation safer, reducing downtime and damage to the equipment.
QR code access
6Fast and simple access to equipment data and documentation at your fingertips.
Environment monitoring
724/7 connected monitoring to highlight condensation enabling users to prevent fast aging.
SM6 Connected Combo
Combine SM6 Connected with MV transformer to provide 24/7 complete MV equipment health assessment, anytime from anywhere. Benefit from connected condition monitoring thanks to embedded thermal and environmental sensors associated with the Substation Monitoring Device (SMD).
-
Circuit breaker monitoring
1Monitor your circuit breaker for preventive maintenance. -
Arc fault detection
2Helps to detect and clear arcs faster, making the installation safer, reducing downtime and damage to the equipment. -
Thermal monitoring
324/7 connected monitoring to highlight hotspots and take preventive action. -
Environmental monitoring
424/7 connected to highlight condensation, enabling users to take action to prevent fast aging conditions. -
SMS alarming
5Receive alerts when problems are detected, to plan maintenance actions. -
Cloud connectivity
6Remote monitoring, Asset Advisor, Facility Expert -
Substation Monitoring Device
7Collects data from smart sensors and provides meaningful information to the local monitoring HMI or remote connections. -
Nearby monitoring
8Get monitoring data from a safer distance with mobile applications or HMI. -
Thermal monitoring
924/7 connected monitoring to highlight hotspots and take preventive action. -
Environmental monitoring
1024/7 connected to highlight condensation, enabling users to take action to prevent fast aging conditions. -
LV winding monitoring
11Directly monitor transformer windings for faults, damage or overload.
Circuit breaker monitoring
1Monitor your circuit breaker for preventive maintenance.
Arc fault detection
2Helps to detect and clear arcs faster, making the installation safer, reducing downtime and damage to the equipment.
Thermal monitoring
324/7 connected monitoring to highlight hotspots and take preventive action.
Environmental monitoring
424/7 connected to highlight condensation, enabling users to take action to prevent fast aging conditions.
SMS alarming
5Receive alerts when problems are detected, to plan maintenance actions.
Cloud connectivity
6Remote monitoring, Asset Advisor, Facility Expert
Substation Monitoring Device
7Collects data from smart sensors and provides meaningful information to the local monitoring HMI or remote connections.
Nearby monitoring
8Get monitoring data from a safer distance with mobile applications or HMI.
Thermal monitoring
924/7 connected monitoring to highlight hotspots and take preventive action.
Environmental monitoring
1024/7 connected to highlight condensation, enabling users to take action to prevent fast aging conditions.
LV winding monitoring
11Directly monitor transformer windings for faults, damage or overload.
Find the right product for your application

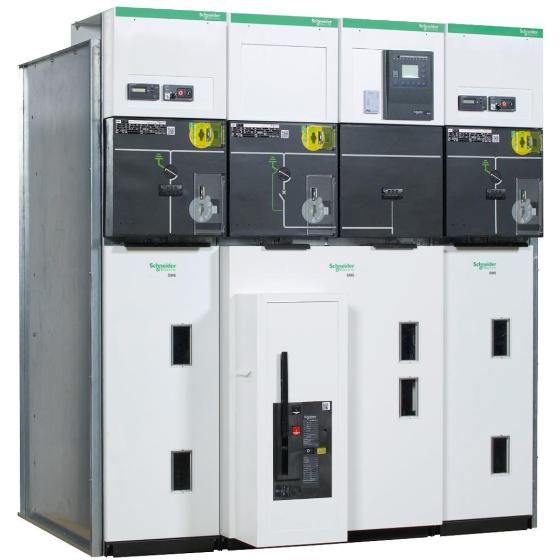

SM6-24
Trihal
PowerLogic™ P3 Protection Relays
PowerLogic™ P5 Protection Relays

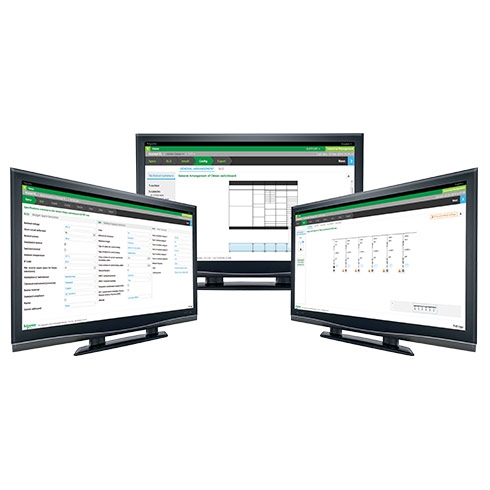

EcoStruxure Power Build – MV
PremSet Switchgear

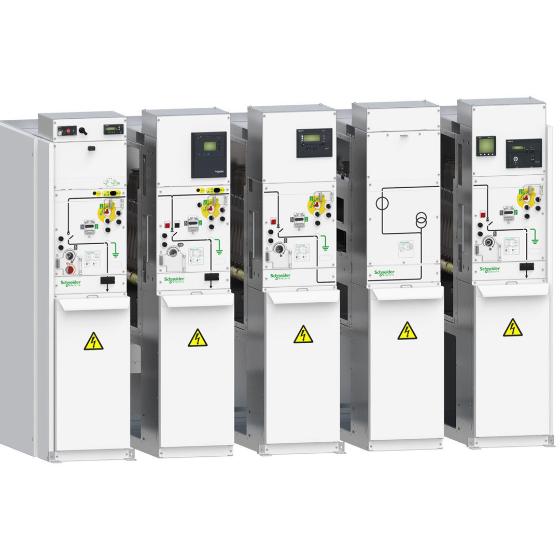

PremSet Switchgear
Our PremSet switchgear is the solution for your company’s evolving MV distribution needs. This future-proof switchgear offers efficiency and ease of use, embedded smart technology, and simplified design, institution, and management of your medium voltage distribution network.
Features
The new generation of medium-voltage (MV) switchgear featuring the Shielded Solid Insulation System (2SIS). PremSet is an essential part of the EcoStruxure Power architecture, it combines with the latest communication and automation devices to act as an IoT connected MV panel. It integrates seamlessly with other innovative, interoperable products, unlocking new opportunities in power distribution.
Benefits
● A technological breakthrough, opening the way to unprecedented safety, efficiency, and ease of use.
● Insulation and screening of all live parts ensure a trouble-free service life, while SF6-free technology enhances peace of mind.
● Easy to install and easy to use, with operator-friendly switchgear and optimized service thanks to SSIS technology.
● Smart grid-ready with advanced protection, control, and monitoring, fully integrated for higher dependability, and energy efficiency.
