Discover EcoStruxure Power Design – Ecodial
EcoStruxure Power Design – Ecodial (formerly known as Ecodial) is a user-friendly software that helps you optimize your equipment and costs, while managing operating constraints during the electrical installation design phase of your project. It is part of our Customer Lifecycle Software range connected to the EcoStruxure Power platform.
Easier electrical installation design

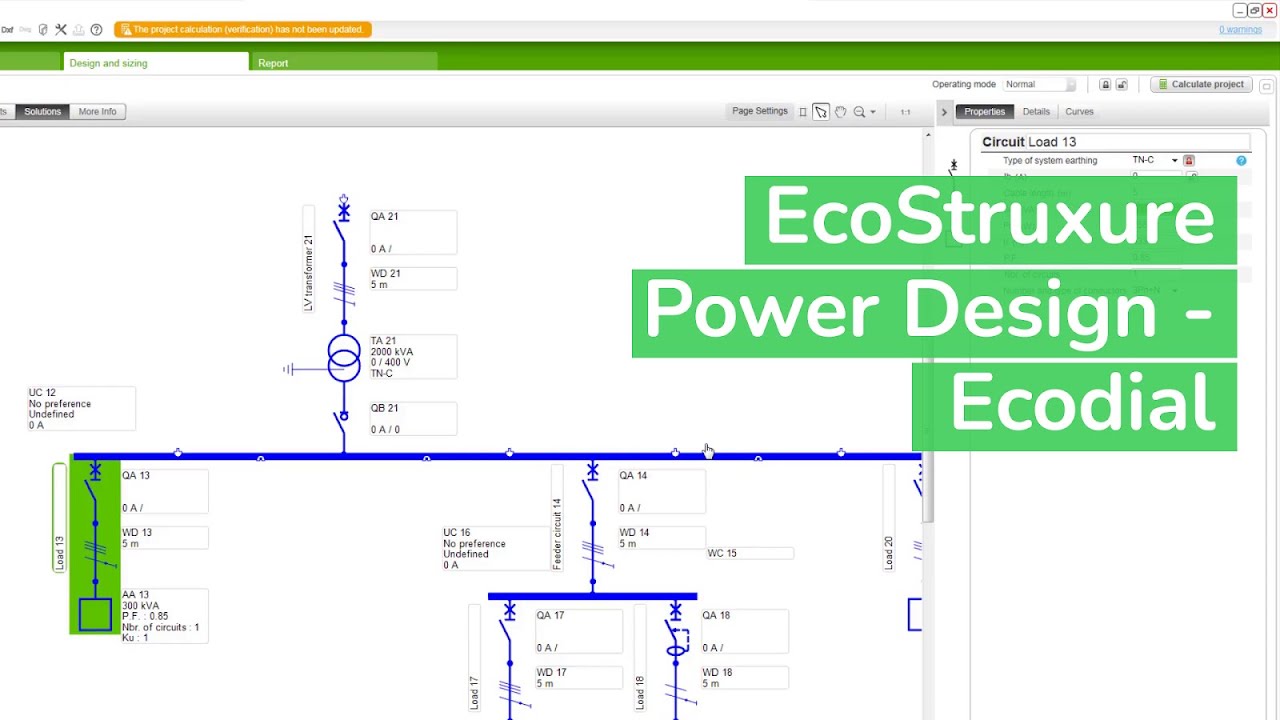

Now it’s easy to draw your single-line diagram and define properties such as load power, polarity, earthing system arrangement, cable length, and operating conditions, for example.
Reliable design
Check the consistency of choices between calculated switchgear and recommended equipment, and verify electrical network consistency for improved people safety. Anomalies are identified on the single-line diagram.
Ensure power availability
Choose the optimal selectivity plan to ensure maximum uptime and a superior cascading plan for optimized uptime/cost. Define back-up generator mode in case of power shutdown, or secure critical loads through UPS in the event of unexpected power failure.
Instructional videos
Discover our collection of how-to videos to help you understand and leverage the features and functions of EcoStruxure Power Design – Ecodial.
Start using EcoStruxure Power Design – Ecodial
Take advantage of the full potential of EcoStruxure Power Design – Ecodial by learning about its additional features, benefits and technical information.
