Test facilities at GIGA Labs
Electrical
Temperature Rise Test Facility
Test Voltage : Upto 10 Volts Line-Neutral
Test Current : Upto 10000A continuous
Regulation : Automatic , 0.5% ~ 2%
Phases: 3
Modes : 3Phase, 2Phase (for 1P testing)
Control Modes : Continuous, Cyclic
Test Current : Upto 10000A continuous
Regulation : Automatic , 0.5% ~ 2%
Phases: 3
Modes : 3Phase, 2Phase (for 1P testing)
Control Modes : Continuous, Cyclic
![](https://www.se.com/in/en/assets/v2/380/media/328138/900/Temperature_test-IC-1080x1080.jpg)
Short Circuit Test Chamber
Test Voltage : Upto 440V ,AC
Test Current : Upto 10KA , AC
Modes : 3Phase, 2Phase , 1Phase
Duty cycle: upto 150 msec
Test Current : Upto 10KA , AC
Modes : 3Phase, 2Phase , 1Phase
Duty cycle: upto 150 msec
![](https://www.se.com/in/en/assets/v2/380/media/328141/900/Short_Circuit-IC-1080x1080.jpg)
Electrical Endurance Test Facility
Voltage : Upto 690 Volts Line-Line
Current : Upto 630A
Duty cycle : 100% upto 63A, 33% upto 630A
Controller : NI platform
Modes : 3Phase, 2Phase & 1Phase.
Capacity : 3 Samples
Current : Upto 630A
Duty cycle : 100% upto 63A, 33% upto 630A
Controller : NI platform
Modes : 3Phase, 2Phase & 1Phase.
Capacity : 3 Samples
![](https://www.se.com/in/en/assets/v2/380/media/328130/900/Electrical_Endurance-IC-1080x1080.jpg)
Residual Current Test Bench
Rated Current : Upto 125A
Residual current : 0.2mA to 500A
Pulsating DC component test facility
Residual current : 0.2mA to 500A
Pulsating DC component test facility
![](https://www.se.com/in/en/assets/v2/380/media/328145/900/Residual_Test-IC-1080x1080.jpg)
Tripping Characteristics for Circuit Breaker & 28 days Test
Current: 0.5 A to 125 A
Residual Current Range: 6mA to 1000mA
Duty cycle: Continuous
Phases: 3 Phase AC
Sample Capacity: 10 Samples simultaneously
Residual Current Range: 6mA to 1000mA
Duty cycle: Continuous
Phases: 3 Phase AC
Sample Capacity: 10 Samples simultaneously
![](https://www.se.com/in/en/assets/v2/380/media/328136/900/Tripping_Test-IC-1080x1080.jpg)
Mechanical
Mechanical Endurance
Maximum load upto 300N
Automated test bench with linear and rotary operation
Automated test bench with linear and rotary operation
![](https://www.se.com/in/en/assets/v2/380/media/328123/900/Mechanical_Endurance-IC-1080x1080.jpg)
Impact test
Capability : upto IK 10
Fixture type :Pendulum and Spring
Fixture type :Pendulum and Spring
![](https://www.se.com/in/en/assets/v2/380/media/328126/900/Impact_test-IC-1080x1080.jpg)
Universal Testing Machine
Maximum load for Compression: 700N
Maximum load for Tension: 500N
Typical Application: To measure Torque Vs Angle, Force Vs Displacement
Maximum load for Tension: 500N
Typical Application: To measure Torque Vs Angle, Force Vs Displacement
![](https://www.se.com/in/en/assets/v2/380/media/328135/900/Universal_test-IC-1080x1080.jpg)

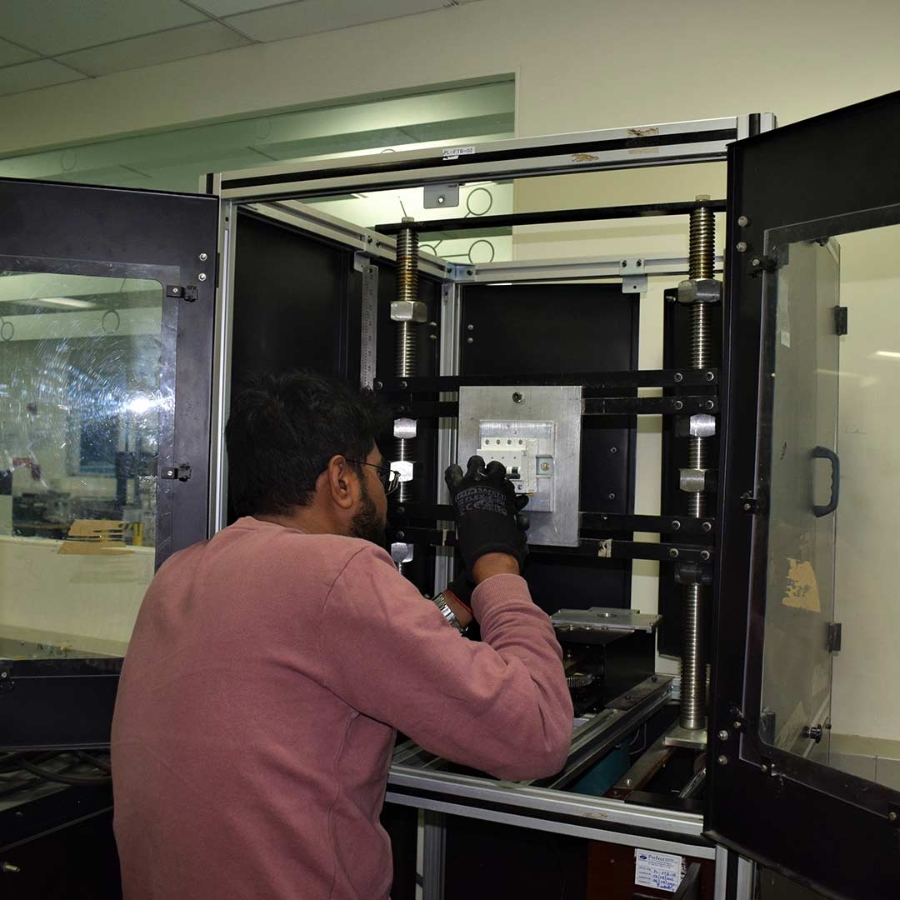

Terminal Reliability Test
Flexion test for terminal reliability
Pull out test
Pull out test
![](https://www.se.com/in/en/assets/v2/380/media/328137/900/Terminal_Relaibilty-IC-1080x1080.jpg)
Environmental
Salt Spray Chamber
Chamber Capacity: 1000Ltrs
Loading threshold: 800mm
Temperature range: Ambient to +50˚C
Loading threshold: 800mm
Temperature range: Ambient to +50˚C
![](https://www.se.com/in/en/assets/v2/380/media/328144/900/Salt_chambers-IC-1080x1080.jpg)
Climatic Chambers
Temperature Range : -70°C to 180°C
Humidity Range : 5%RH to 95%RH
Ramp Rate : 3°C/Min
Working Volume : 800X1000X800 mm
Program mode: Yes
Humidity Range : 5%RH to 95%RH
Ramp Rate : 3°C/Min
Working Volume : 800X1000X800 mm
Program mode: Yes
![](https://www.se.com/in/en/assets/v2/380/media/328133/900/Climatic_Chambers-IC-1080x1080.jpg)
Heating Chambers
Temperature Range : 25°C to 300°C
Ramp Rate: : 5°C/minute (max)
Cubicle (Inside space) : 600X600X600 mm
Damper facility available
Ramp Rate: : 5°C/minute (max)
Cubicle (Inside space) : 600X600X600 mm
Damper facility available
![](https://www.se.com/in/en/assets/v2/380/media/328127/900/Heating_chambers-IC-1080x1080.jpg)

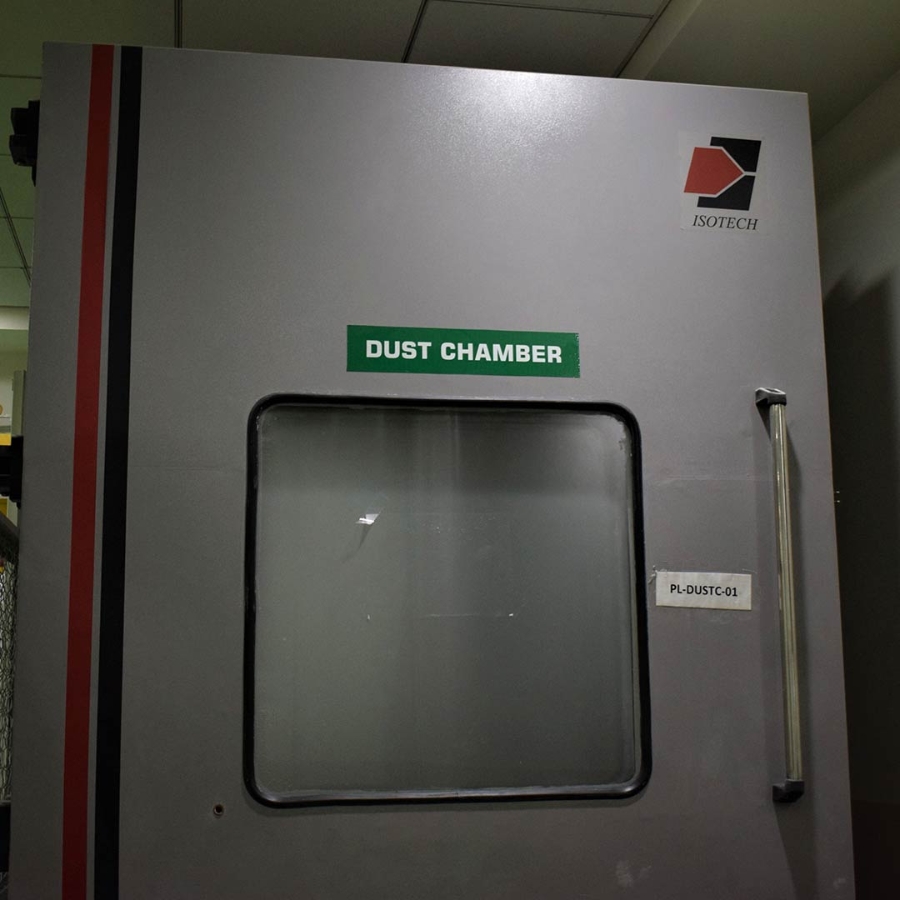

Ingress protection (IP) Dust Test
Probe test : IP2X , 3X 4X
Dust chamber : IP 5X and 6X
Sample size : upto Height - 1cubic m
Standard : IEC 60529
Dust chamber : IP 5X and 6X
Sample size : upto Height - 1cubic m
Standard : IEC 60529
![](https://www.se.com/in/en/assets/v2/380/media/328124/900/Ingress_Protection-IC-1080x1080.jpg)
Ingress Protection (IP) Water Test
Water test facility : IP X1 to X6 & UL 50E standard
Sample size : upto Height - 2.2m
Sample size : upto Height - 2.2m
![Dust chamber machinery](https://www.se.com/in/en/assets/v2/380/media/223847/900/Ingress_protection_water-1080x1080.jpg)
EMI
Conducted Emission (CE)Lab
Frequency Range: 9kHz to 30MHz
LISN 1: 3 PH,400VAC, 690VDC,200A,
150kHz to 30MHz
AC Supply:3 Phase 100A, 440V, AC Filtered Supply
LISN 1: 3 PH,400VAC, 690VDC,200A,
150kHz to 30MHz
AC Supply:3 Phase 100A, 440V, AC Filtered Supply
![](https://www.se.com/in/en/assets/v2/380/media/328132/900/Conducted_emmsion-IC-1080x1080.jpg)
Power Frequency Magnetic Field Immunity Lab
IEC 61000-4-8
Test Range: 50A/m
AC Supply:3 Phase 60A, AC Supply
Test Range: 50A/m
AC Supply:3 Phase 60A, AC Supply
![](https://www.se.com/in/en/assets/v2/380/media/328121/900/Power_frequency-IC-1080x1080.jpg)
Radiated Emission (RE)
ETS-Lindgren 3 meter Space Saver Chamber for Pre-Compliant RE
Frequency Range : 30MHz –1GHz
Antenna Mast :Scan up to 2 meters
Load:1000kg
Lab Dimensions :7.5m (L) x 3m (W) x 3m (H)
Probe Set for E & H near field Emission 100kHz –2GHz
AC Supply: 3 Phase 60A, 0-277 / 480V, AC Filtered Supply ,50A,1000V DC Filtered Supply
Frequency Range : 30MHz –1GHz
Antenna Mast :Scan up to 2 meters
Load:1000kg
Lab Dimensions :7.5m (L) x 3m (W) x 3m (H)
Probe Set for E & H near field Emission 100kHz –2GHz
AC Supply: 3 Phase 60A, 0-277 / 480V, AC Filtered Supply ,50A,1000V DC Filtered Supply
![](https://www.se.com/in/en/assets/v2/380/media/328146/900/Radiated_Emmsion-IC-1080x1080.jpg)
Electrostatic Discharge Immunity (ESD) Lab
ETS-LindgrenRFShieldedRoom
Test Facility 1: 30kV Air and Contact Discharge
Test Facility 2: 16.5kV Air and 10kV Contact Discharge
AC Supply:3 Phase 60A, 0-277 / 480V, AC Filtered Supply
Single Phase 30A,230V, AC Filtered Supply
Test Facility 1: 30kV Air and Contact Discharge
Test Facility 2: 16.5kV Air and 10kV Contact Discharge
AC Supply:3 Phase 60A, 0-277 / 480V, AC Filtered Supply
Single Phase 30A,230V, AC Filtered Supply
![Machines in a factory](https://www.se.com/in/en/assets/v2/380/media/223971/Electrostatic_Discharge-1080x1080%20(1).jpg)
Electrical Fast Transient /Burst Immunity (EFT) Lab ETS-LindgrenRFShieldedRoom
4.5kV Burst on Power lines with 10A CDN,
4.0kV Burst on data & signal lines using
capacitive coupling clamp
AC Supply:3 Phase 60A, 0-277 / 480V, AC Filtered Supply
Single Phase 30A,230V, AC Filtered Supply
50A,1000V DC Filtered Supply
4.0kV Burst on data & signal lines using
capacitive coupling clamp
AC Supply:3 Phase 60A, 0-277 / 480V, AC Filtered Supply
Single Phase 30A,230V, AC Filtered Supply
50A,1000V DC Filtered Supply
![](https://www.se.com/in/en/assets/v2/380/media/328129/900/Electrical_Fast-IC-1080x1080.jpg)

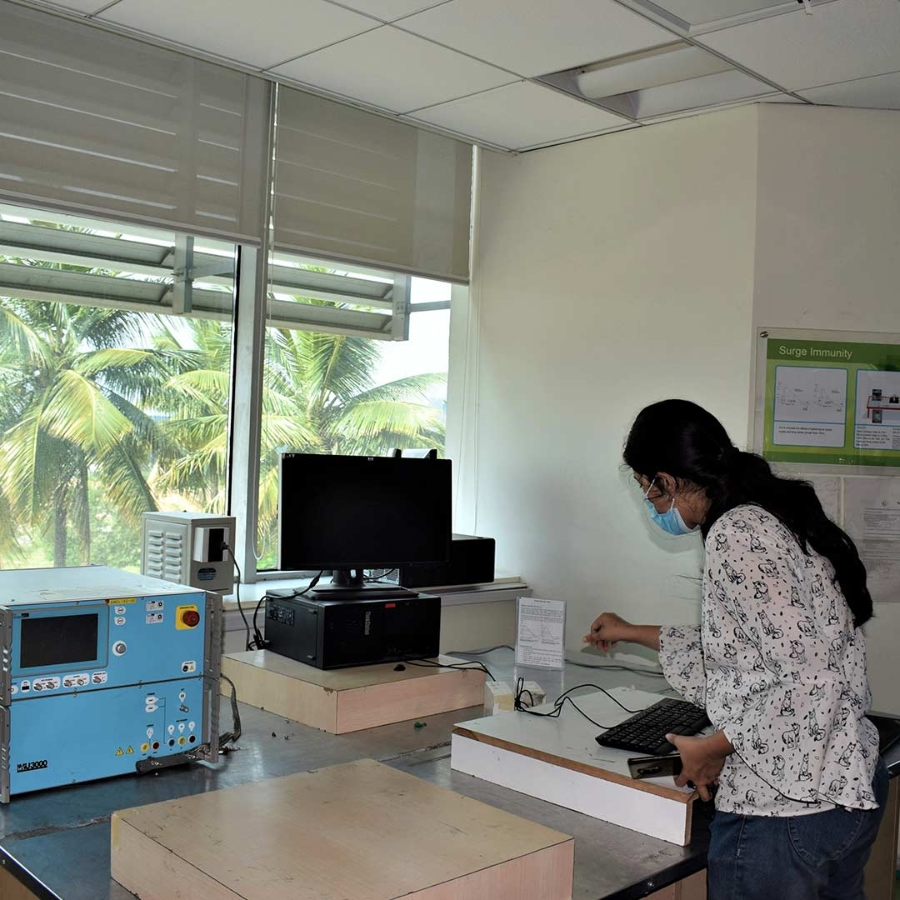

Surge & Ring wave Immunity Lab IEC 61000-4-5 & IEC 61000-4-12
Test Facility
1.2/50us –8/20us, 6.0kV Combination wave & 5us,100kHz,6.0kV Ring wave
with Inbuilt CDN 1 Phase 16A 300VAC & 300VDC.
6.0kV Surge & Ring wave on I/O lines(Unsymmetrical Unshielded)
Surge as per Fig.9 of IEC 61000-4-5 &
Ring wave as per Fig.8 of IEC 61000-4-12 Max 240VAC & 200VDC, 3A per line
AC Supply:3 Phase 60A, AC Supply
1.2/50us –8/20us, 6.0kV Combination wave & 5us,100kHz,6.0kV Ring wave
with Inbuilt CDN 1 Phase 16A 300VAC & 300VDC.
6.0kV Surge & Ring wave on I/O lines(Unsymmetrical Unshielded)
Surge as per Fig.9 of IEC 61000-4-5 &
Ring wave as per Fig.8 of IEC 61000-4-12 Max 240VAC & 200VDC, 3A per line
AC Supply:3 Phase 60A, AC Supply
![](https://www.se.com/in/en/assets/v2/380/media/328140/900/Surge_Ringwave-IC-1080x1080.jpg)
Conducted RF Immunity Lab (CS)
Frequency Range : 150kHz -80Mhz (230MHz)
Test Voltage : 25V with CDN’s & 10V with EM Clamp
13 Possible configuration of CDN’s
AC Supply : 3 Phase 60A, AC Supply
Test Voltage : 25V with CDN’s & 10V with EM Clamp
13 Possible configuration of CDN’s
AC Supply : 3 Phase 60A, AC Supply
![](https://www.se.com/in/en/assets/v2/380/media/328131/900/Conducted_RF-IC-1080x1080.jpg)
Prototyping
FDM 3D printing
Accurate and Reliable 3D printing with ASA & ABS Material.
![](https://www.se.com/in/en/assets/v2/380/media/328128/900/FDM_3d-IC-1080x1080.jpg)
Sheet Metal Prototyping
Sheetmetal Component prototyping with aid of Press brake and EDM wire cut technology.
![](https://www.se.com/in/en/assets/v2/380/media/328143/900/Sheet_Metal-IC-1080x1080.jpg)

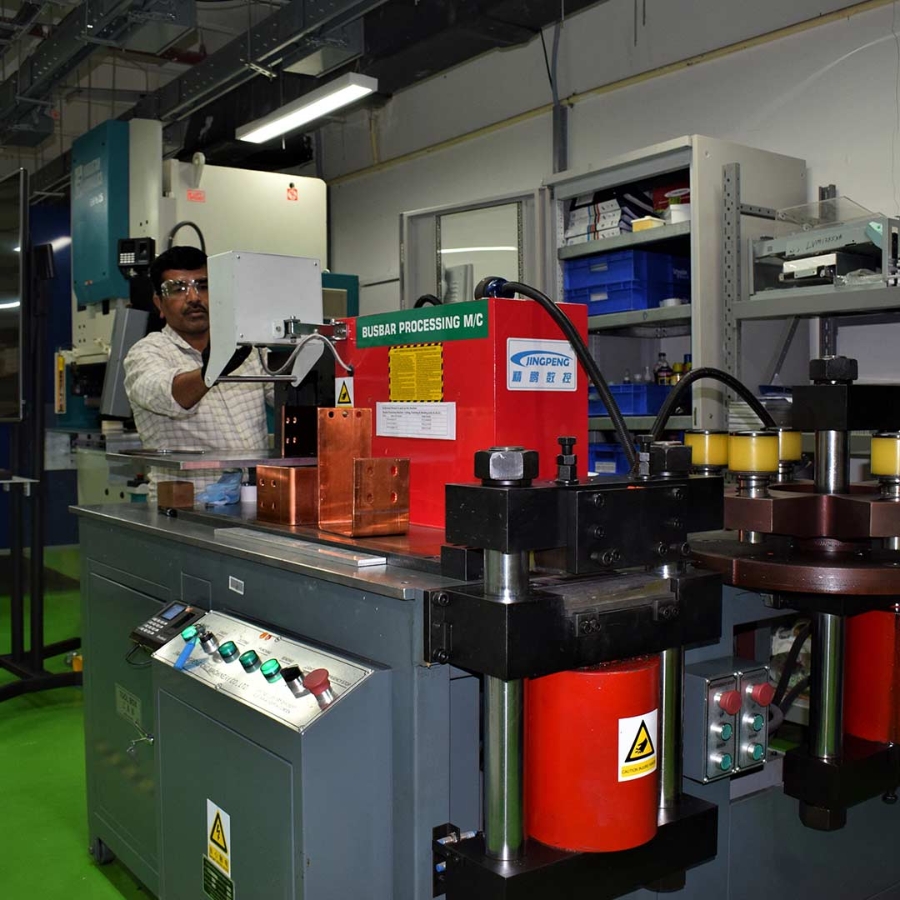

BusBar Bending Machine
Copper and Aluminum bus bars with aid of Press brake and Bus bar bending Machine.
Bus bars up to 12mm can be processed.
Bus bars up to 12mm can be processed.
![](https://www.se.com/in/en/assets/v2/380/media/328134/900/Busbad_bending-IC-1080x1080.jpg)
Microscope
Model : S8APO MC120 HD
Make : Leica
Features :
• Apo-chromatic 8:1 zoom with magnification 10x-80x
• Fast, accurate inspection
• 80x magnification at 75 mm working distance
• 38° angle eye tubes
• Fluorescent ring light Supply
Make : Leica
Features :
• Apo-chromatic 8:1 zoom with magnification 10x-80x
• Fast, accurate inspection
• 80x magnification at 75 mm working distance
• 38° angle eye tubes
• Fluorescent ring light Supply
![](https://www.se.com/in/en/assets/v2/380/media/328122/900/Microscope-Giga-labs-IC-1080x1080.jpg)
